Marantz AV 30 11.4-Channel Balanced AV Preamplifier Powered by HEOS™

• Detailed and immersive sound transforms your home theater
• 11.4-channel output allows a variety of speaker layouts up to 7.4.4
• Decodes Dolby Atmos, DTS:X, IMAX Enhanced audio, and AURO-3D
• Acoustic room tuning with Audyssey MultEQ XT32 and optional
• Dirac Live, including Bass Control and Active Room Treatment
• Seven HDMI inputs (all 8K) and three outputs for the highest resolution video
• Sound Master tuned for warm, rich and detailed Marantz sound
• High-quality HD on-screen interface makes setup intuitive
• Balanced and RCA outputs for external power amplifiers
• Elegant design matches beautiful sound
• Optimized HDAM-SA2 for fast response and low distortion

Surround Processing

• Supports DTS-HD Master Audio, DTS:X, DTS Virtual:X, and DTS Neural:X
• Supports Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, and Dolby Surround
• IMAX Enhanced certified
• Supports Auro-3D, 360 Reality Audio, and MPEG-H
• 11.4-channel processing with multichannel stereo mode

Audio Design & Processing

• Copper-plated chassis with toroidal power transformer
• Current Feedback topology with HDAM-SA2 modules
• Pure Direct mode and gold-plated RCA terminals
• Clock jitter reduction and MDAX2 compressed audio enhancer
• Audyssey MultEQ XT32 room calibration with Dynamic EQ and Dynamic Volume
• Dirac Live upgrade capability

Network & Streaming

• Built-in Wi-Fi, Bluetooth, and Ethernet connectivity
• HEOS multi-room streaming platform
• Apple AirPlay 2 and Roon Ready support
• Streaming services including Spotify, Amazon Music, TIDAL, Deezer, and SoundCloud
• Bluetooth audio retransmission for wireless headphones

HDMI & Video

• 7 HDMI inputs and 3 HDMI outputs (2 main, 1 zone)
• 8K/60Hz and 4K/120Hz HDMI 2.1 support with HDCP 2.3
• HDR support including HDR10, HDR10+, Dolby Vision, HLG, and Dynamic HDR
• eARC support with HDMI scaling up to 8K
• Gaming features including ALLM, VRR, and Quick Frame Transport

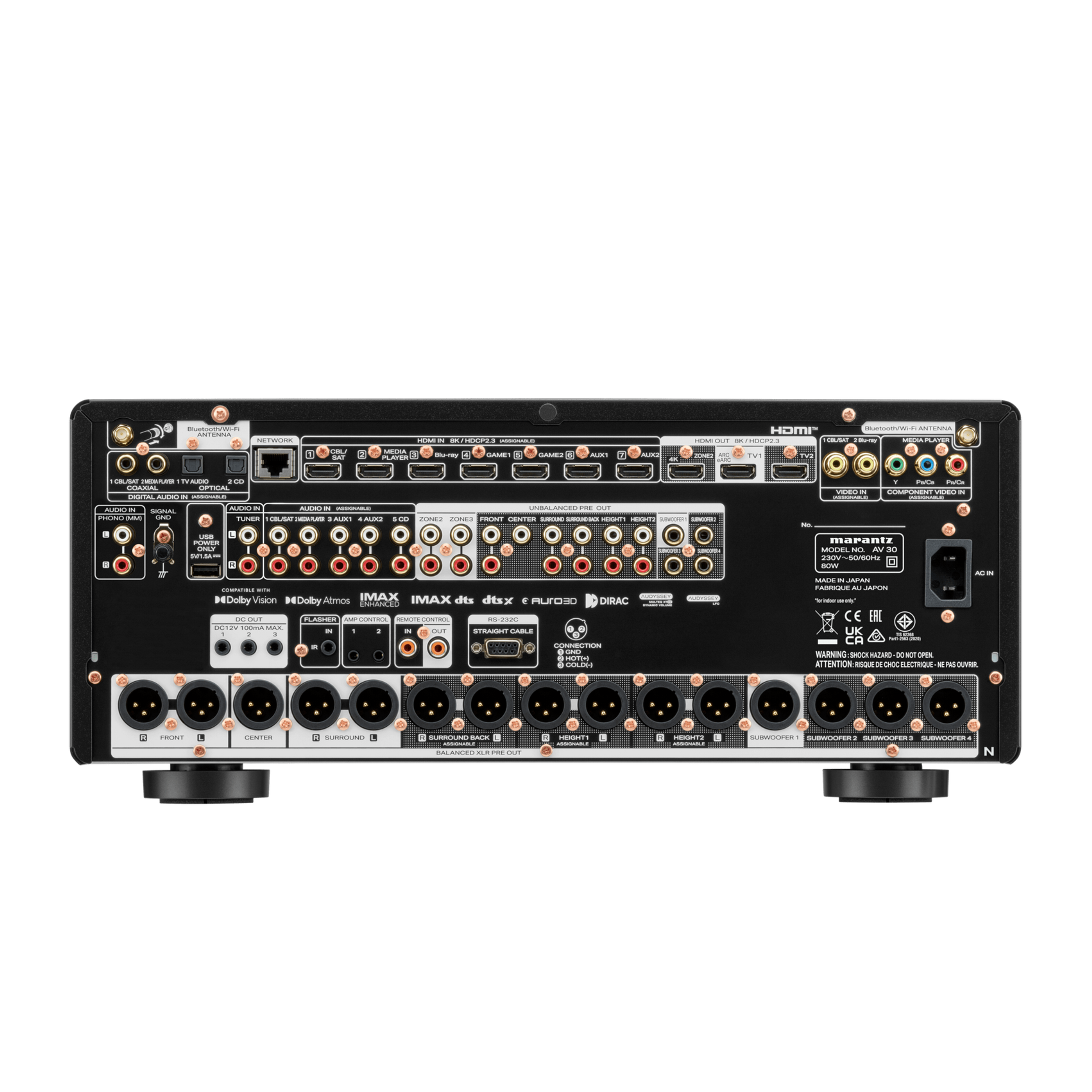

Inputs & Outputs

• 6 analogue inputs including 1 × XLR
• Phono (MM) input
• Digital inputs: 2 optical and 2 coaxial
• 11.4-channel pre-outs (RCA and XLR)
• 4 independent subwoofer outputs
• Front USB input with audio playback

Multi-Room & Control

• HEOS multi-room audio with support for 3 zones
• Zone HDMI output from HDMI sources
• IP, RS232, web, and app control support
• 3 DC trigger outputs and IR input

General

• Metal front panel construction
• Modern HD graphical user interface with porthole OLED display
• Power consumption: 80W
• Standby consumption: 0.2W

Dimensions & Weight

• 17.4 × 15.6 × 7.5 in (without antenna)
• Weight: 24.5 lbs

Included in the Box

• Main unit
• Remote control and batteries
• Audyssey calibration microphone and stand
• Detachable antennas
• AC power cable
• Quick start guide
