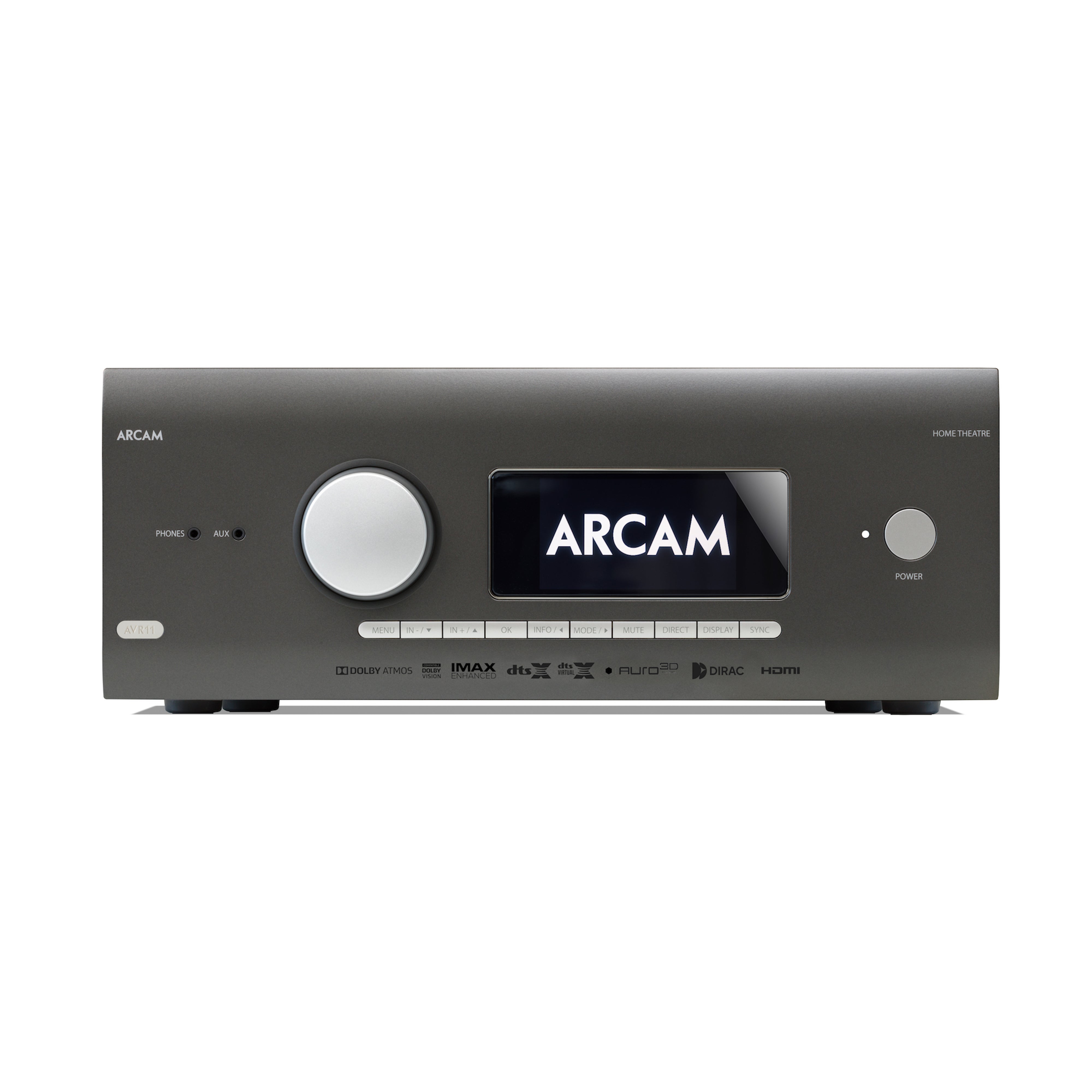

Arcam AVR11 7.2 Home Theatre Receiver

$7,895.00
Available from Supplier
We can order this item from our supplier. It usually ships from our store within 3–4 business days if the supplier has it in stock.
Qty
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

HDMI 2.1 Class AB AV Receiver

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.



Rich Musicality + Immersive Sound = Stunning Realism

The AVR11 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR11 can deliver incredible theatre experiences.



The most musical AV Receiver

The Arcam AVR11 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR11 features an over-engineered power supply and transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.



Room Optimisation

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.



Dirac Live® Bass Control is available at an additional cost via the Dirac website

Dirac Live® Bass Control aggregates measurement and location data from a subwoofer and the main speakers to determine how a system’s bass is best reproduced throughout the room.

  • Dolby Atmos, DTS:X & AURO-3D 7.1.4 decoding

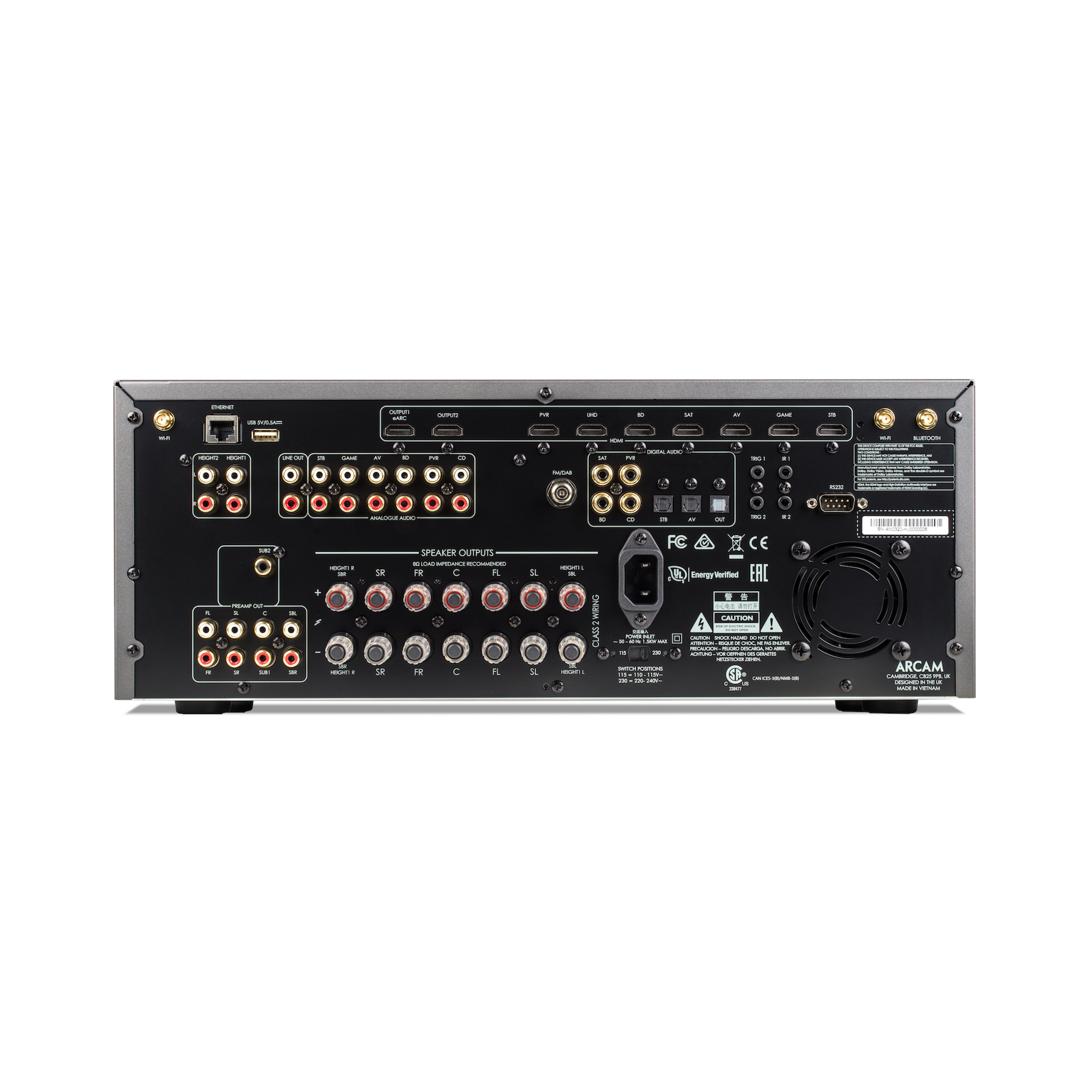

  • 7 HDMI inputs, 2 HDMI outputs, eARC compatible
  • HDMI 2.1 with HDCP2.3
  • All inputs support 8K@60fps and 4K@120fps
  • Supports Dolby Vision, HDR10+, HDR10 and HLG
  • Includes Dirac Live® room correction
  • Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
  • 7 Channels of Class AB power amplification
  • Wi-Fi / Ethernet, RS232 and IR control
  • Google Chromecast® built-in for streaming audio
  • Apple® Airplay2
  • Bluetooth aptX®HD
  • Free MusicLife iOS and Android UPnP app
  • Supports MQA
  • Roon Ready

Continuous power output, per channel, 8Ω/4Ω

  • 2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W
  • 2 channels driven, 1kHz, 0.2% THD 85W/120W
  • 7 channels driven, 1kHz, 0.2% THD 60W/85W
  • Residual noise & hum (A-wtd) <0.15mV

Maximum input

  • 4.5V rms

Nominal sensitivity

  • 1V, 2V, 4V (user adjustable)

Input impedance

  • 47kΩ

Signal/noise ratio (A-wtd ref 100W) normal/stereo direct

  • 100dB/110dB

Frequency response

  • 20Hz—20kHz ± 0.2dB

Preamplifier Outputs

  • Nominal output level - 1V RMS (max. 5V RMS)
  • Output impedance - 560Ω
  • THD+N (20Hz—20kHz) –100dB

Headphone Output

  • Maximum output level into 32Ω - 5Vrms
  • Output impedance - <100Ω

Mains voltage

  • 110–120V or 220–240V, 50–60Hz

Power consumption (maximum)

  • 1.5kW (Thermal dissipation approx. 5200 BTU/hour)

Power consumption (idle, typical)

  • 90W (Thermal dissipation approx. 340 BTU/hour)

Power consumption (standby)

  • <0.5W

Dimensions W x D (including speaker terminals) x H (including feet)

  • 433 x 425 x 171mm

Weight (net)

  • 16.5kg

Weight (packed)

  • 19.8kg

Supplied accessories

  • Mains lead
  • Remote control with 2 x AAA batteries Quick Start Guide (full manual online)
  • DAB/FM aerial
  • 3 x Wi-Fi/Bluetooth antennas Calibration microphone
  • USB cable

EAN

  • 6925281994456
