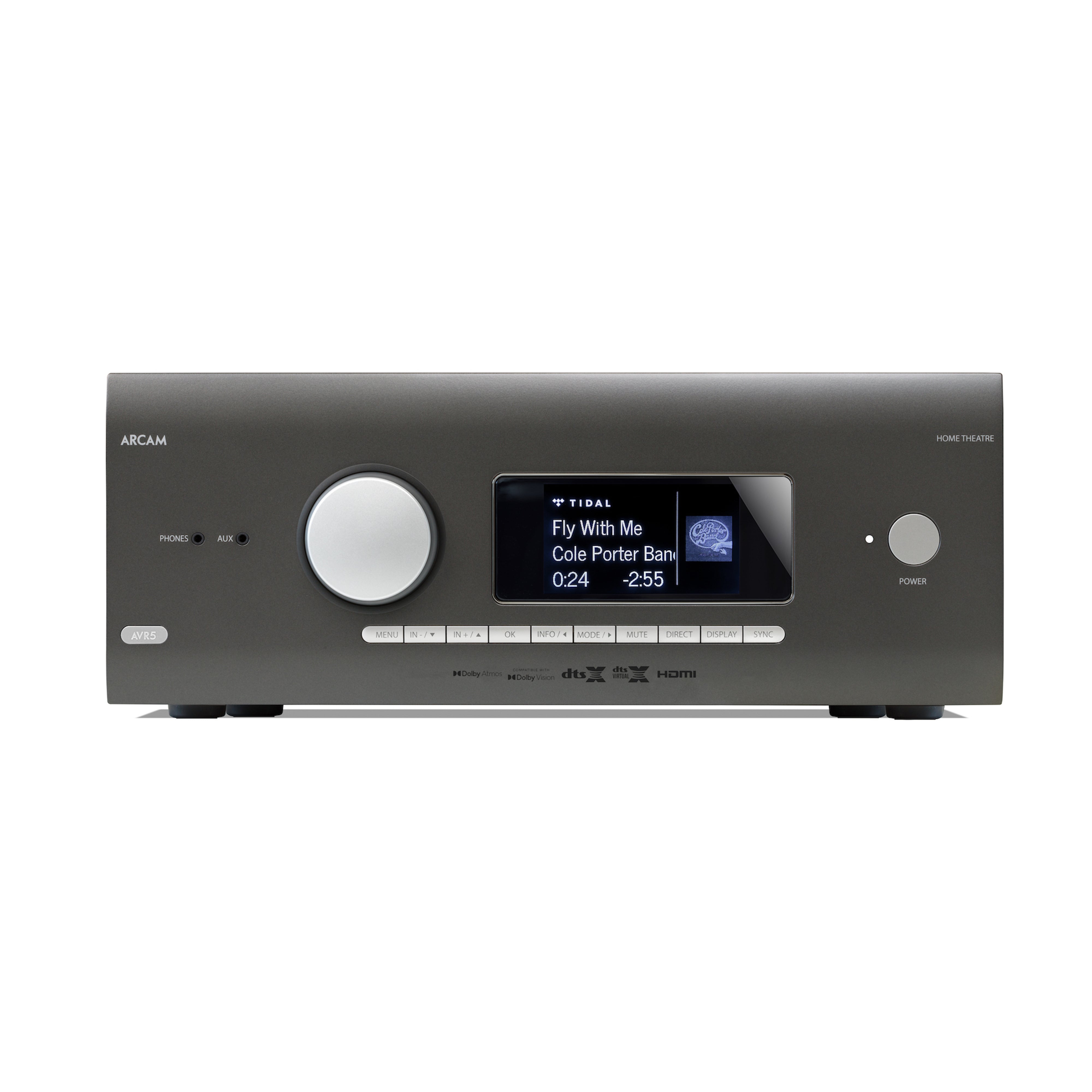

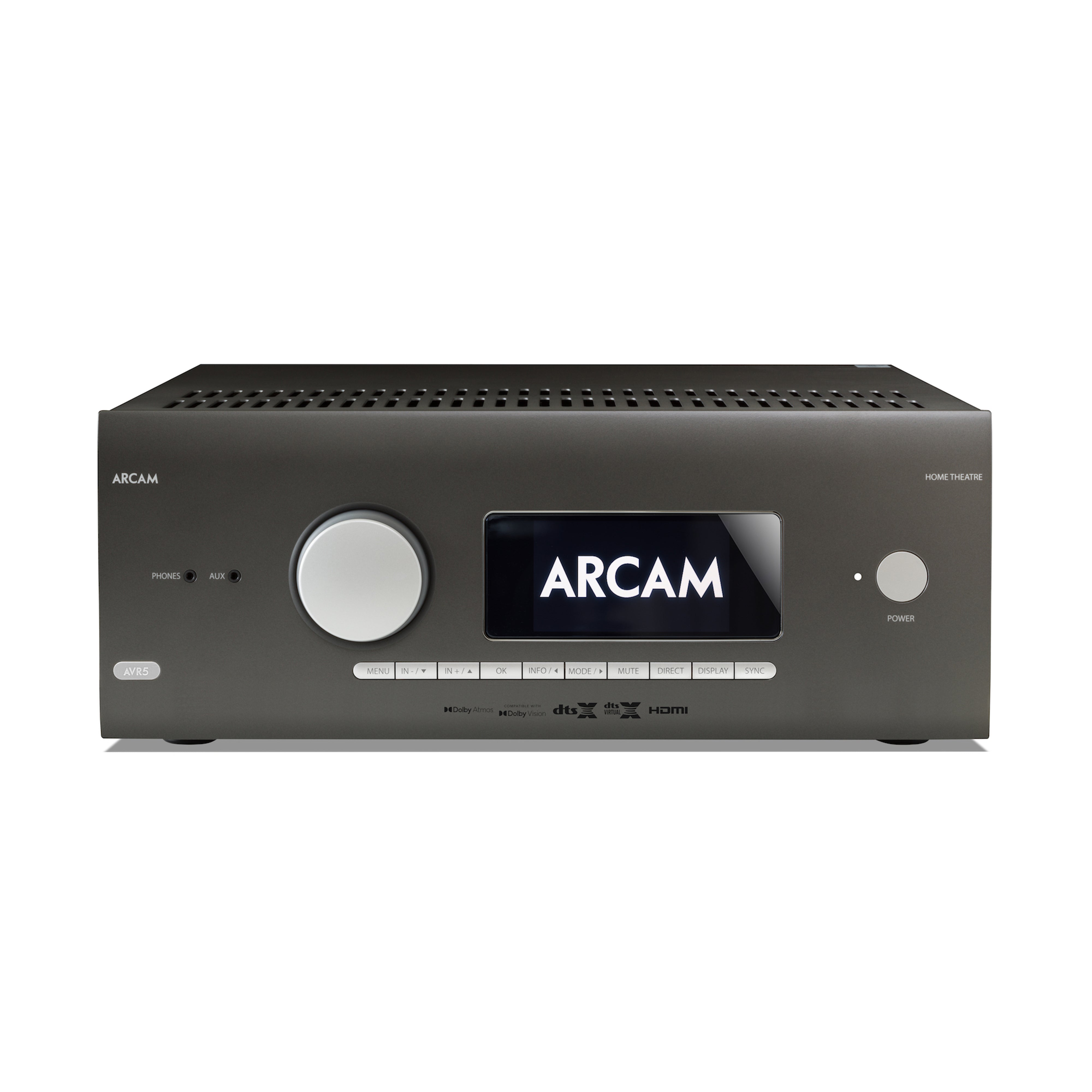

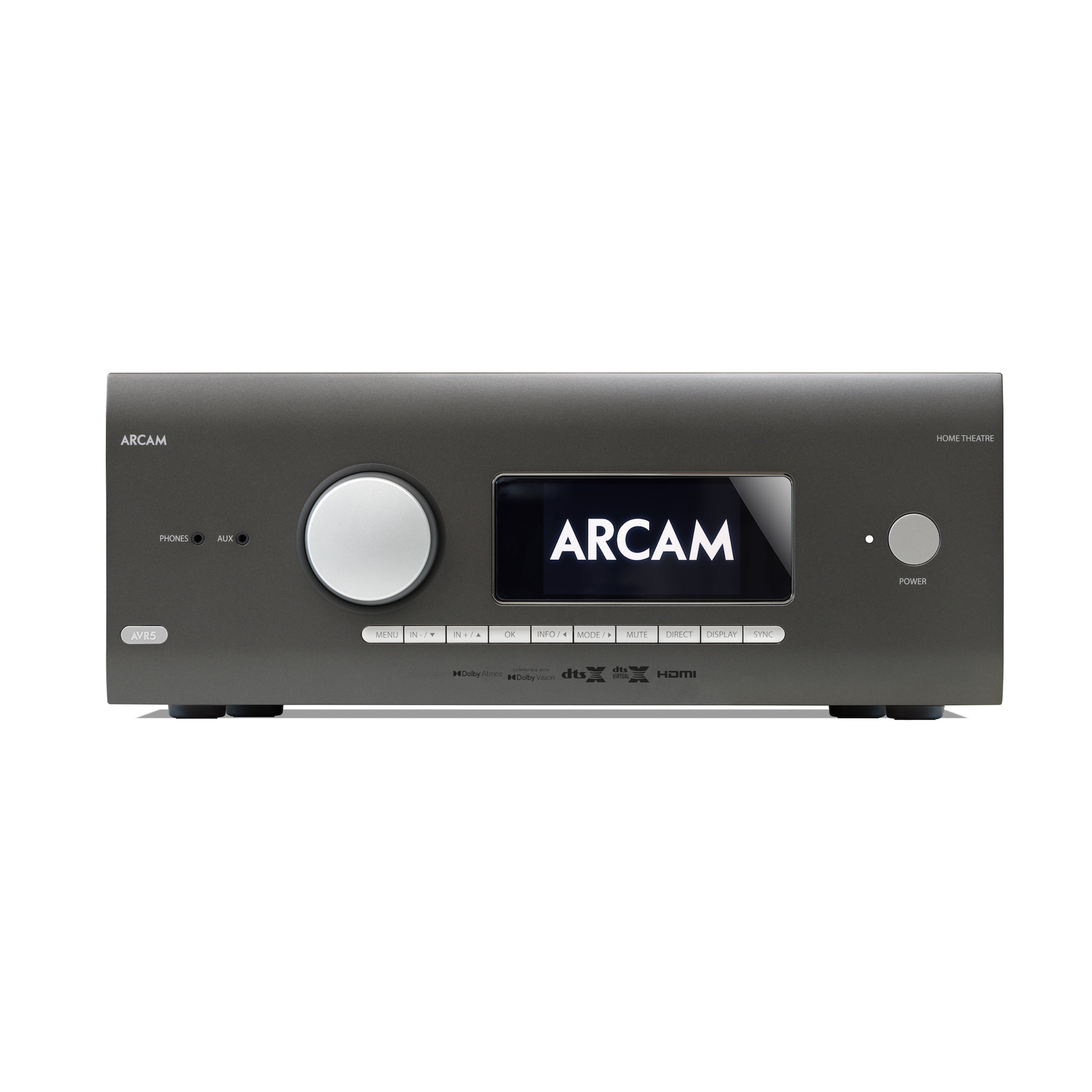

Arcam AVR5 Home Theatre Receiver

$4,495.00
Available from Supplier
We can order this item from our supplier. It usually ships from our store within 3–4 business days if the supplier has it in stock.
Qty
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Class AB AV Receiver

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.



Rich Musicality + Immersive Sound = Stunning Realism

The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.



Excellent sound movies and music

The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.



All the modern convenience

The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.



Dirac Ready

Your Arcam AVR5 comes Dirac Ready, fully prepared to run Dirac Live, the world’s most advanced room correction software. Dirac Live® is available at an additional cost via the Dirac website. Dirac Live® Bass Control aggregates measurement and location data from a subwoofer and the main speakers to determine how a system’s bass is best reproduced throughout the room.

  • Dolby Atmos & DTS:X 7.1.4 decoding
  • 4K (UHD) HDMI2.0b with HDCP2.2

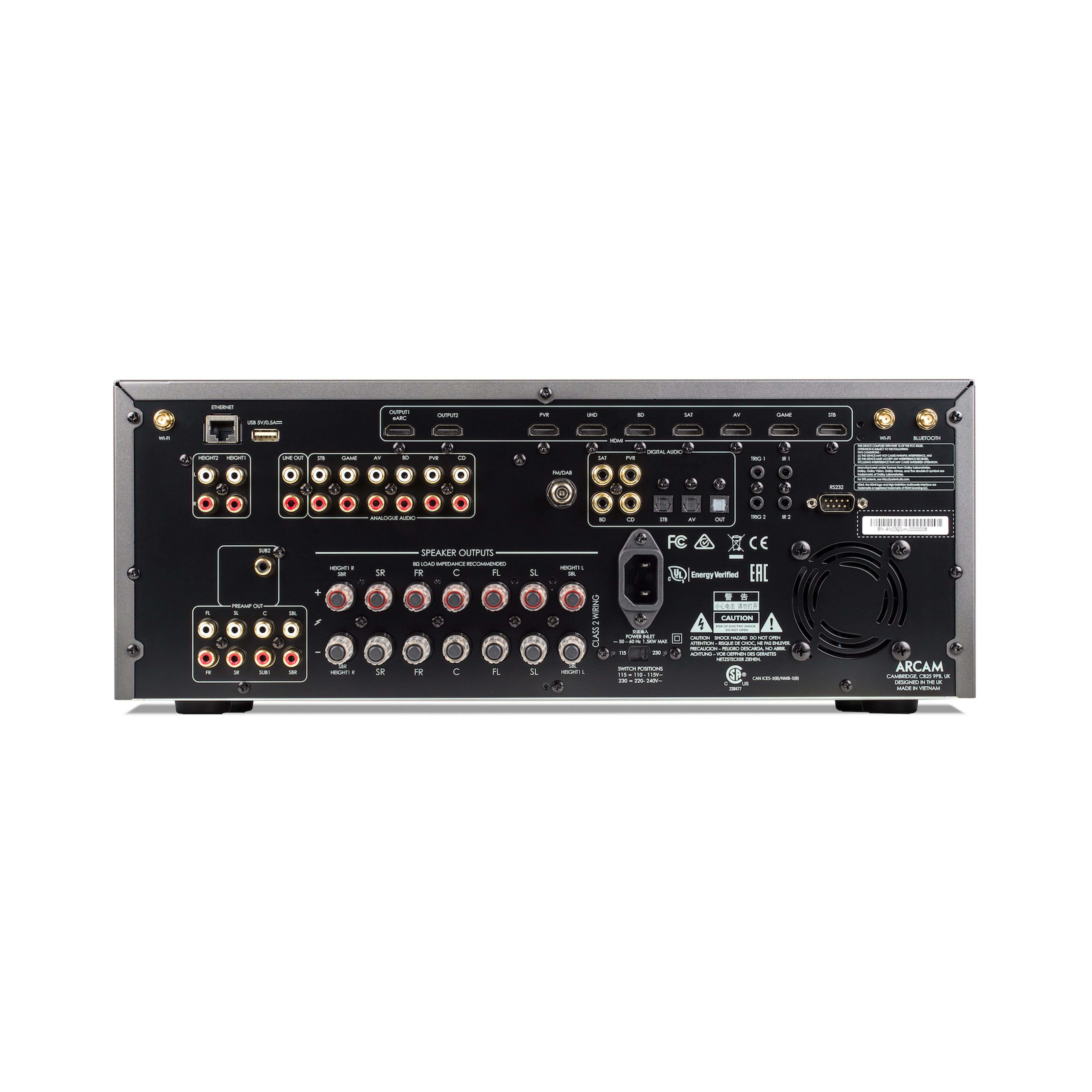

  • 7 HDMI inputs, 2 HDMI outputs, eARC compatible
  • ESS 9026PRO audiophile DACs
  • Class AB power amplification
  • Uses frame-type transformer
  • Wifi / Ethernet, RS232 and IR control
  • Apple Airplay2 and Google Cast for streaming audio
  • Bluetooth aptX®HD
  • Free MusicLife iOS and Android UPnP streaming app
  • Supports MQA
  • Roon Ready

Continuous power output, per channel, 8Ω/4Ω

  • 2 channels driven, 20Hz - 20kHz, <0.02% THD - 80W/100W
  • 2 channels driven, 1kHz, 0.2% THD - 85W/120W
  • 7 channels driven, 1kHz, 0.2% THD - 60W/85W
  • Residual noise & hum (A-wtd) - <0.15mV

Maximum input

  • 4.5V rms

Nominal sensitivity

  • 1V, 2V, 4V (user adjustable)

Input impedance

  • 47kΩ

Signal/noise ratio (A-wtd ref 100W) normal/stereo direct

  • 100dB/110dB

Frequency response

  • 20Hz—20kHz ± 0.2dB

Nominal output level

  • 1V RMS (max. 5V RMS)

Output impedance

  • 560Ω

THD+N (20Hz—20kHz)

  • –100dB

Headphone Output

  • Maximum output level into 32Ω - 5Vrms
  • Output impedance - <100Ω

Mains voltage

  • 110–120V or 220–240V, 50–60Hz

Power consumption (maximum)

  • 1.5kW (Thermal dissipation approx. 5200 BTU/hour)

Power consumption (idle, typical)

  • 90W (Thermal dissipation approx. 340 BTU/hour)

Power consumption (standby)

  • <0.5W

Dimensions W x D (including speaker terminals) x H (including feet)

  • 433 x 425 x 171mm

Weight (net)

  • 16.5kg

Weight (packed)

  • 19.8kg
  • Supplied accessories
  • Mains lead
  • Remote control with 2 x AAA batteries
  • Manual
  • DAB/FM aerial
  • 3 x WiFi/Bluetooth antennas

EAN

  • 6925281997372
