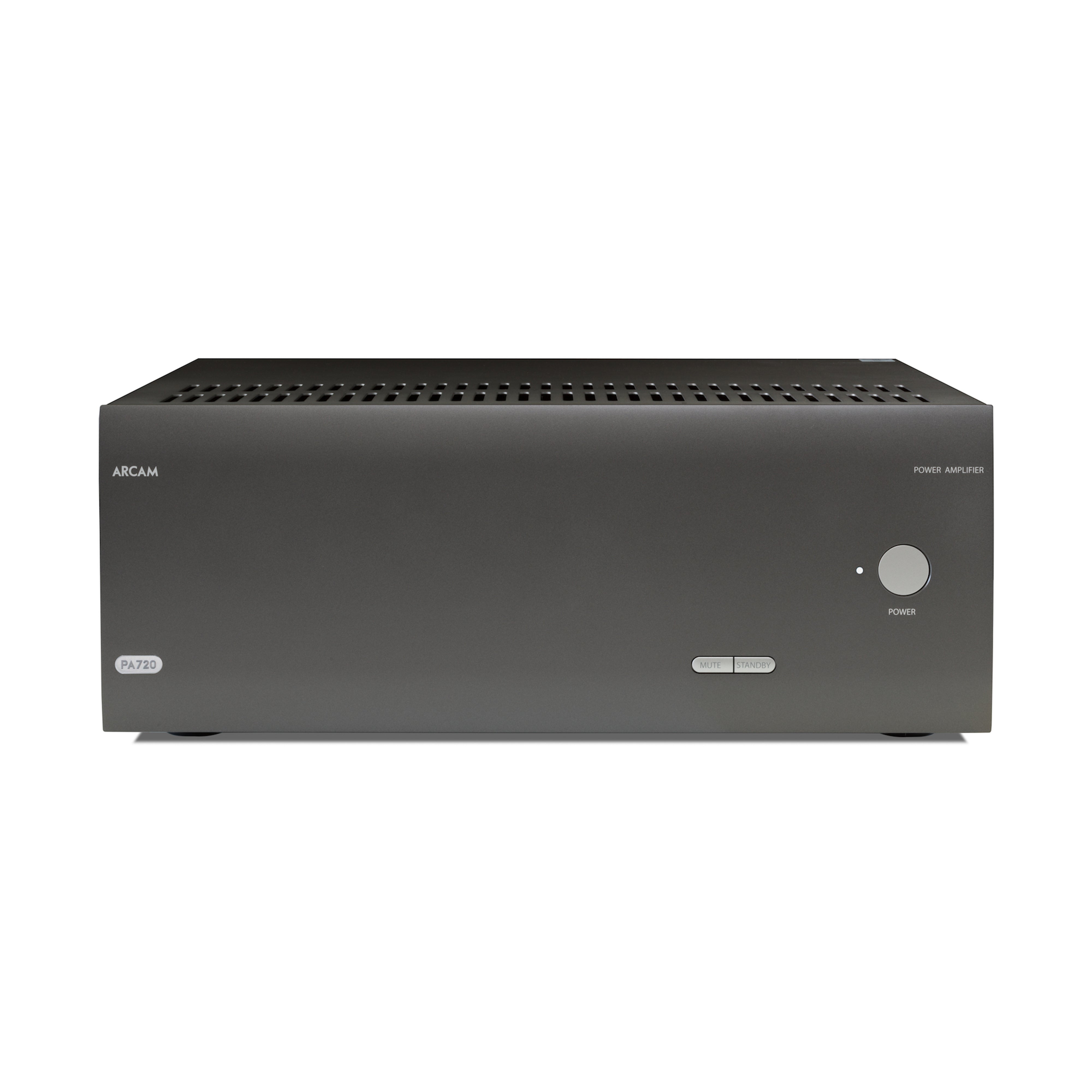

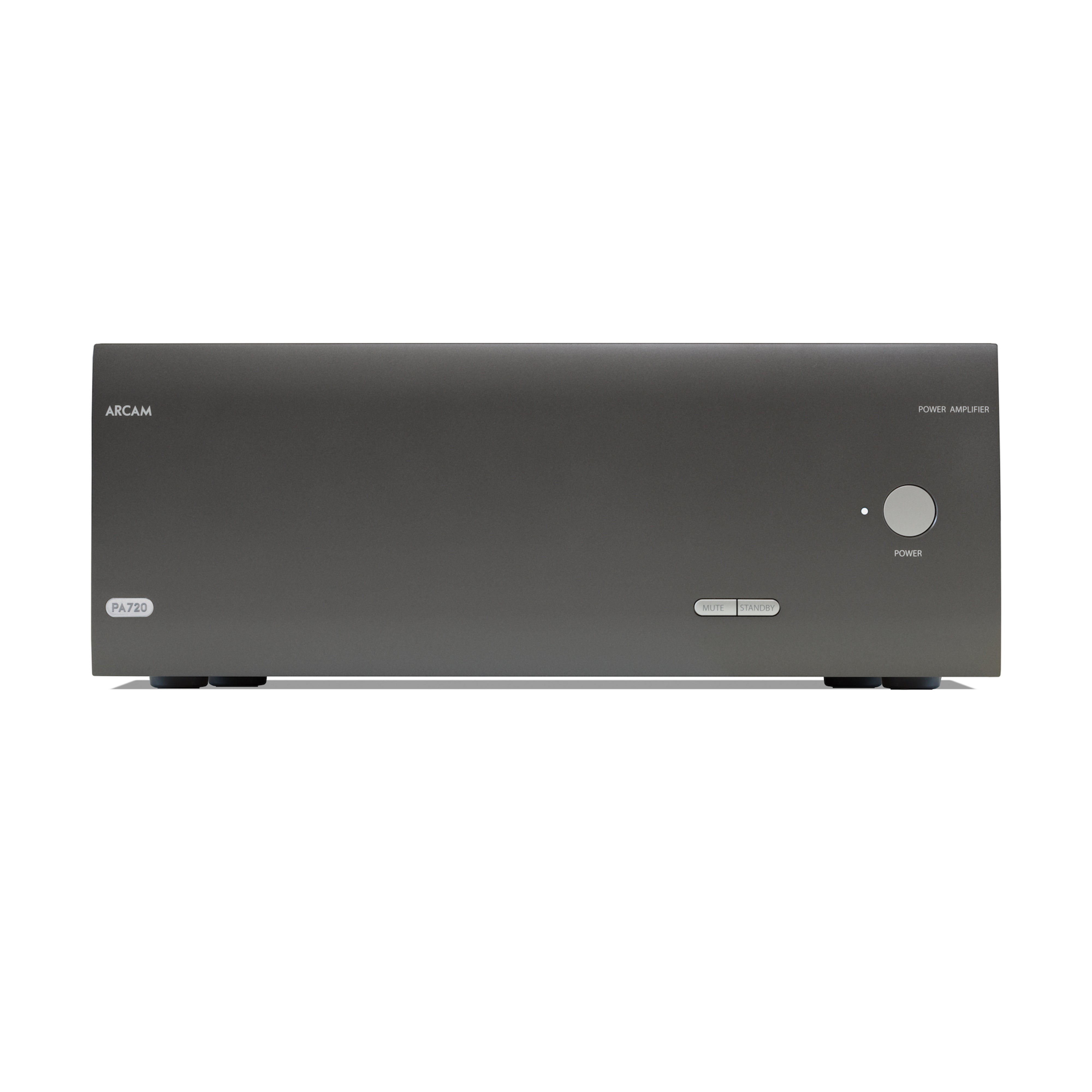

Arcam PA720 Class G Power Amplifier

$8,395.00
Available from Supplier
We can order this item from our supplier. It usually ships from our store within 3–4 business days if the supplier has it in stock.
Qty
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Class G Power Amplifier

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.



Exceptional Power, Immersive Sound

The PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.



Unparalleled Build Quality

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

  • 7 Channel Power Amplifier
  • 7 x 140W Class G amplification (all channels driven)
  • Class G amplification with 20W of Class A operation
  • Toroidal transformer
  • Ethernet, RS232 control

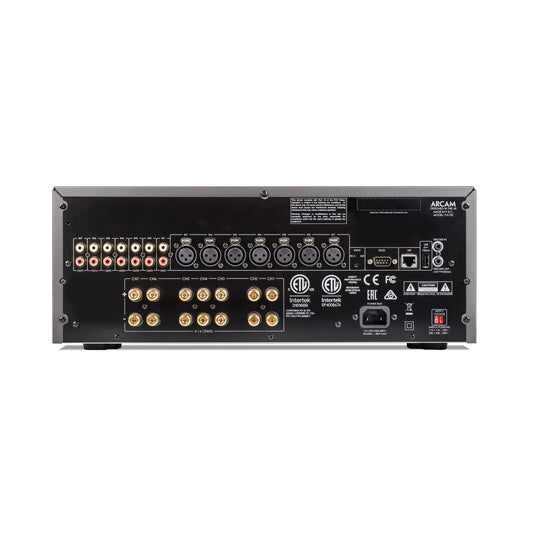

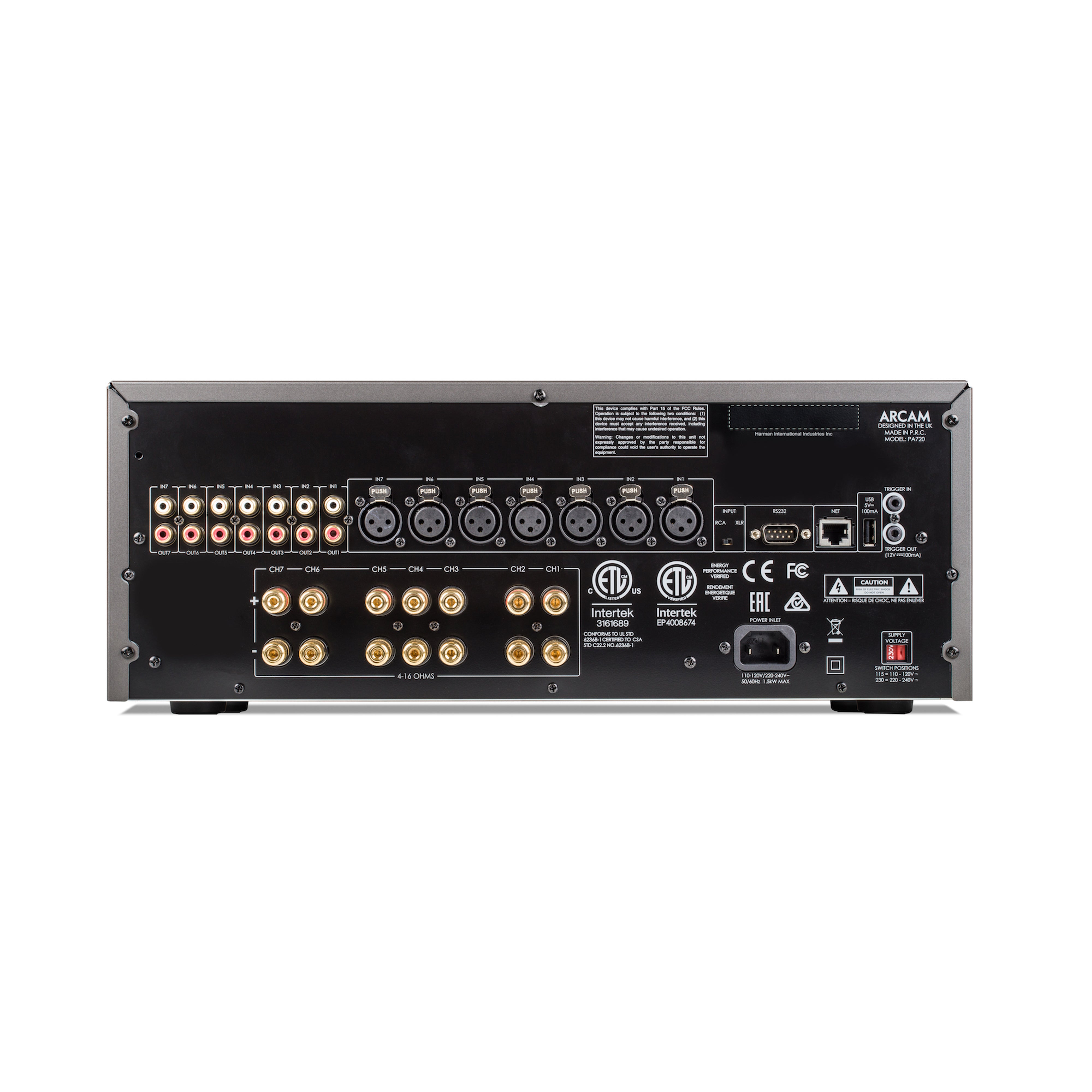

  • Switchable RCA or balanced XLR inputs

Continuous power output at 0.2% THD per channel

  • Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 140W / 100W
  • Five channels driven, 4Ω / 8Ω, 1kHz - 175W / 110W
  • Two channels driven, 4Ω / 8Ω, 1kHz - 225W / 140W
  • Harmonic distortion, 80% power, 8Ω at 1kHz - 0.002%

Input sensitivity 50W / 8Ω

  • RCA Type - 800mV RMS
  • XLR Type - 1.6V RMS

Signal/Noise ratio (A-wtd) 50W / 8Ω

  • 105dB

Input impedance

  • 10kΩ

Frequency response

  • 20 - 20kHz +/-0.05dB

Mains voltage

  • 110–120V or 220–240V, 50–60Hz

Power consumption (maximum)

  • 1.5kW

Power consumption (idle, typical)

  • 90W (Thermal dissipation approx. 340 BTU/hour)

Power consumption (standby)

  • <0.5W

Dimensions W x D x H (including feet, control knob and speaker terminals)

  • 433 x 425 x 177mm

Weight (net)

  • 18kg

Weight (packed)

  • 19.7kg

EAN

  • 6925281956720
