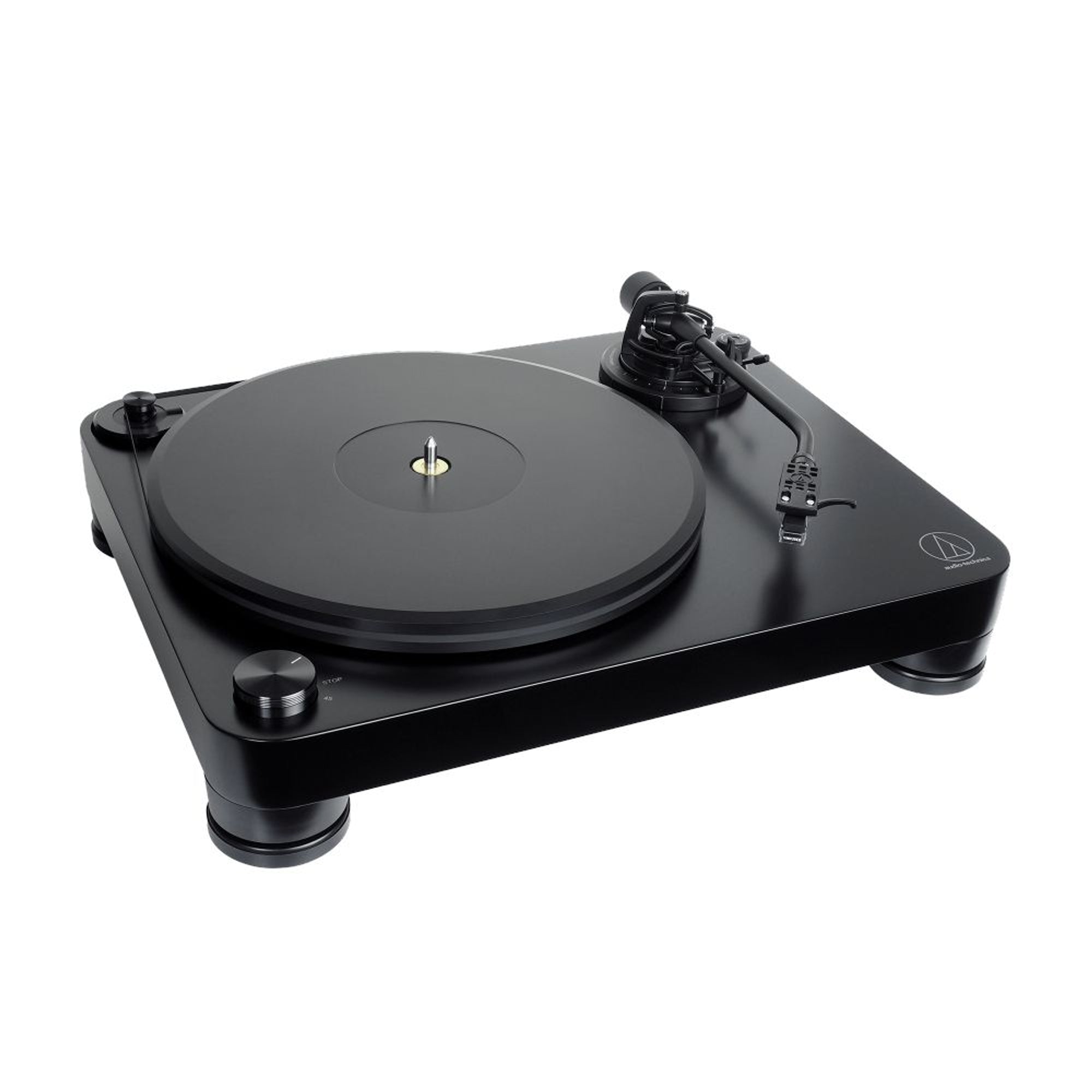

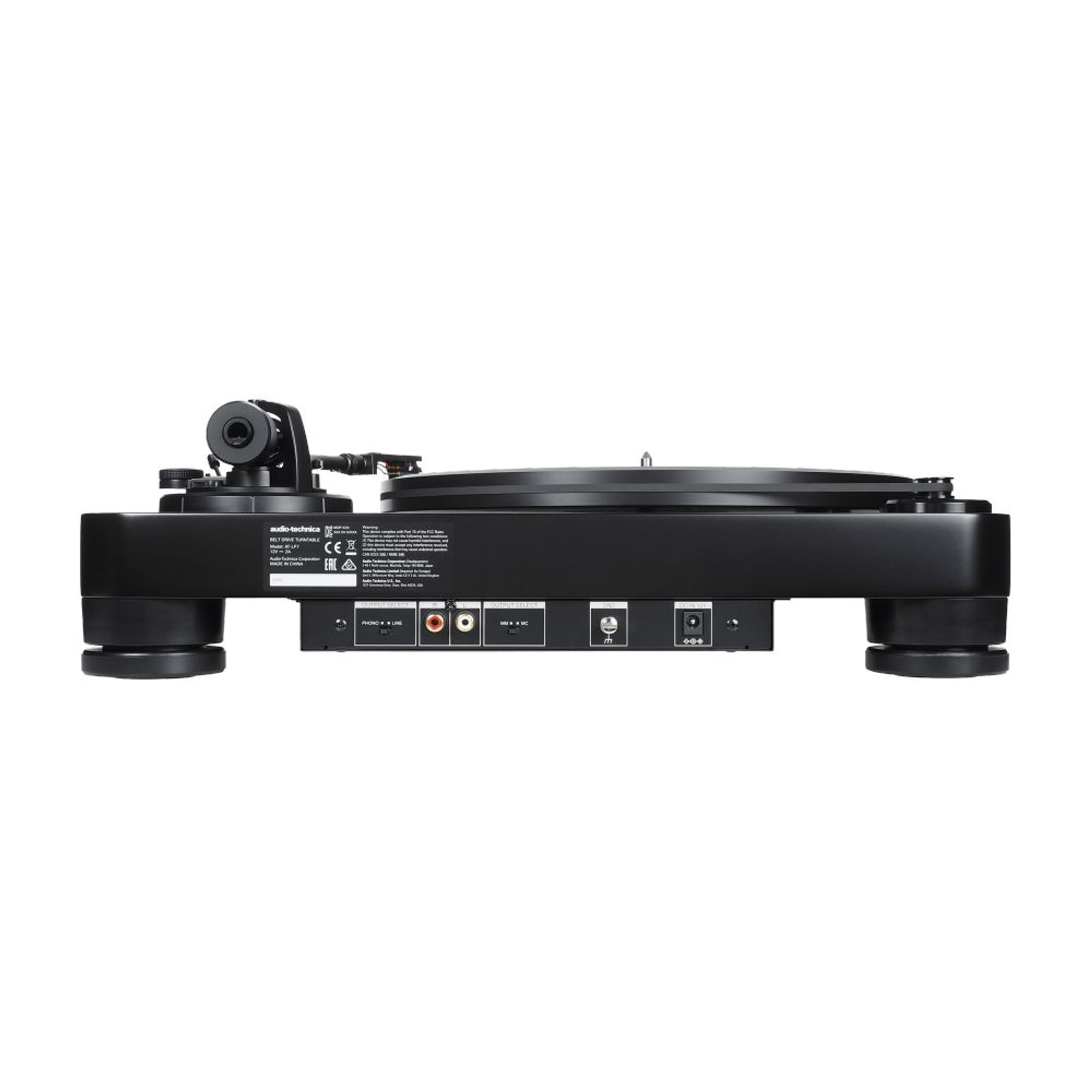

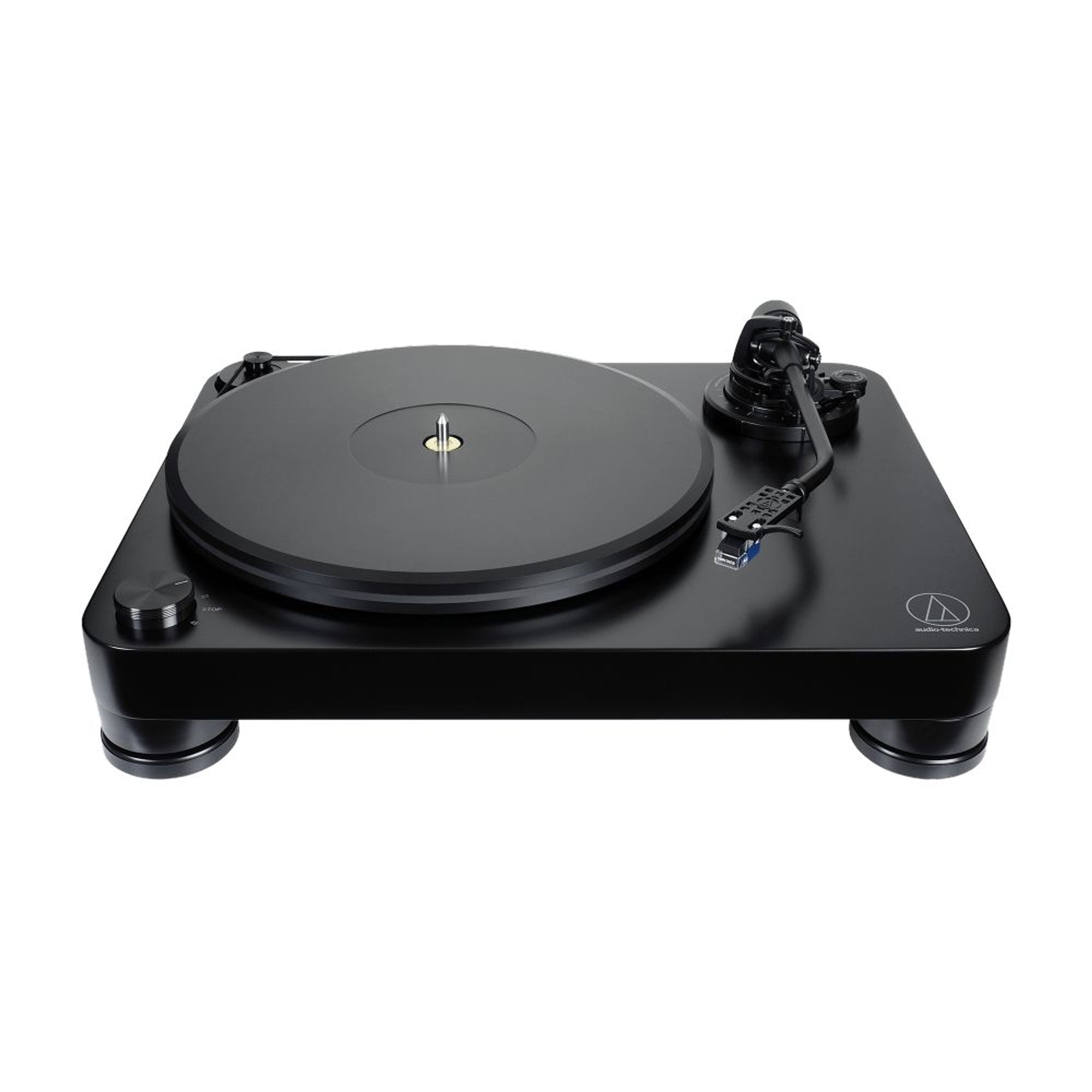

Audio Technica AT-LP7 Fully Manual Belt-Drive Turntable

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Motor features a speed-sensor system to maintain accurate platter rotation speed
• VM520EB Dual Moving Magnet Cartridge provides outstanding channel separation and extended frequency response, and allows for easy replacement with any VM stylus
• J-shaped tone arm features a metallic gimbal suspension system and precision bearings for excellent tracking
• Built-in switchable phono pre-amplifier with selectable modes for moving magnet or moving coil cartridges
• 20 mm-thick, anti-resonance, polyoxymethylene platter
• 40 mm-thick MDF (medium density fiberboard) chassis
• Lightweight AT-HS10 headshell
• Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, and dust cover

Type

• 2-speed, fully manual operation

Motor

• DC motor

Drive Method

• Belt drive

Speeds

• 33-1/3 RPM, 45 RPM

Turntable Platter

• Polyoxymethylene

Wow and Flutter

• <0.08% WRMS (33 RPM) at 3 kHz

Signal-to-Noise Ratio

• >60 dB

Output Level

• Pre-amp “PHONO”: 4.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE (MM)”: 280 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain

• MM: 36 dB nominal, RIAA equalized MC: 56 dB nominal, RIAA equalized

Power Supply Requirements

• 100 to 240 V AC, 50/60 Hz, 0.6 A max.

Dimensions

• 450.0 mm (17.72") W x 352.0 mm (13.86") D x 157.0 mm (6.18") H

Weight

• 8.3 kg (18.30 lbs.), without dust cover

Accessories Included

• VM520EB Dual Moving Magnet stereo cartridge with replaceable stylus
• AT-HS10 lightweight headshell
• power cord
• dual RCA (male) to dual RCA (male) stereo cable
• 45 RPM adapter

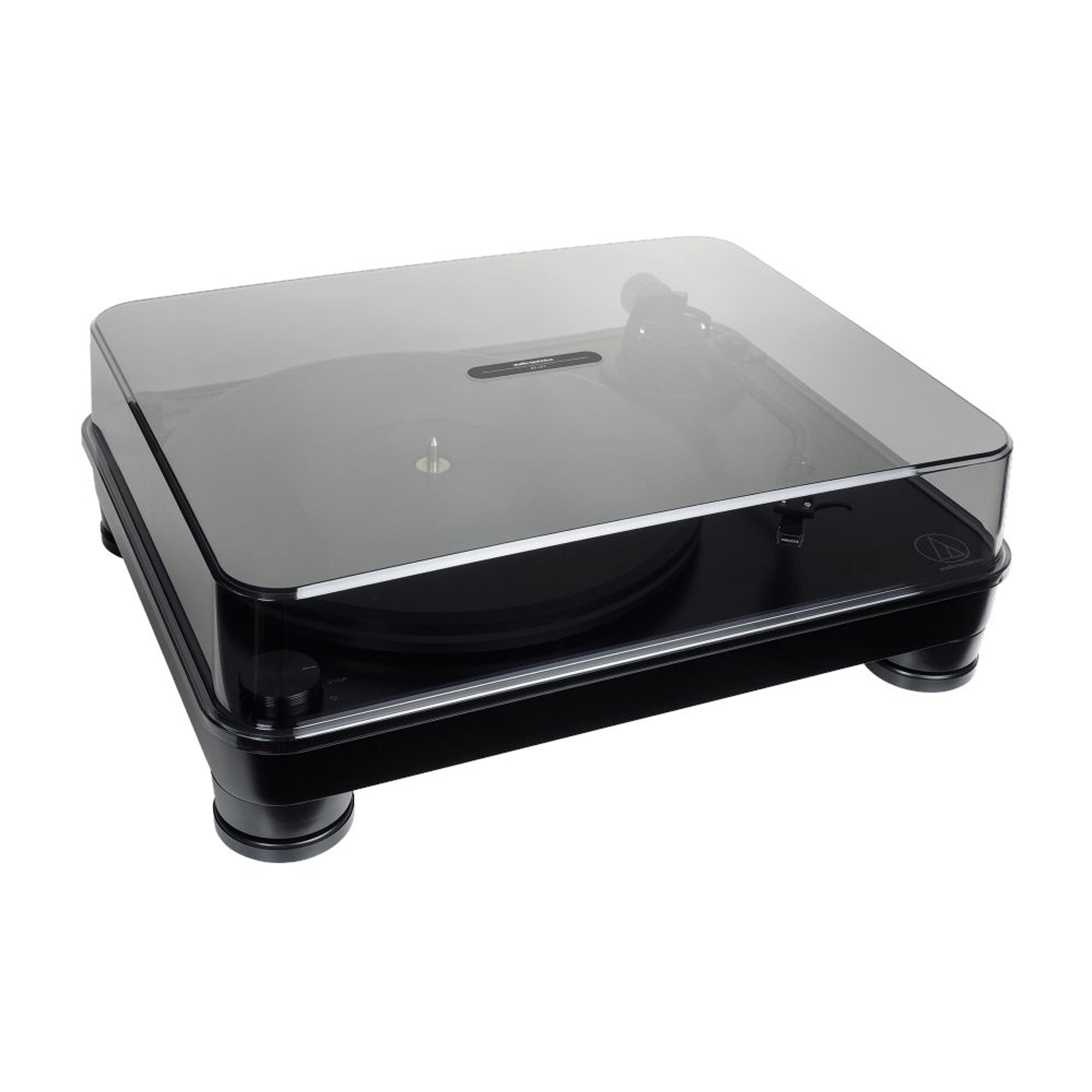

• dust cover

Replacement Cartridge

• VM520EB
• Notes

Tonearm Specifications Type:

• Static balanced J-shaped tonearm
• Effective length: 247 mm

Overhang:

• 17 mm

Maximum tracking error angle:

• Less than 2.5°

Stylus pressure adjustment range:

• 0 to 2.5 g

Applicable cartridge weight range (including headshell):

• 15 to 20 g
