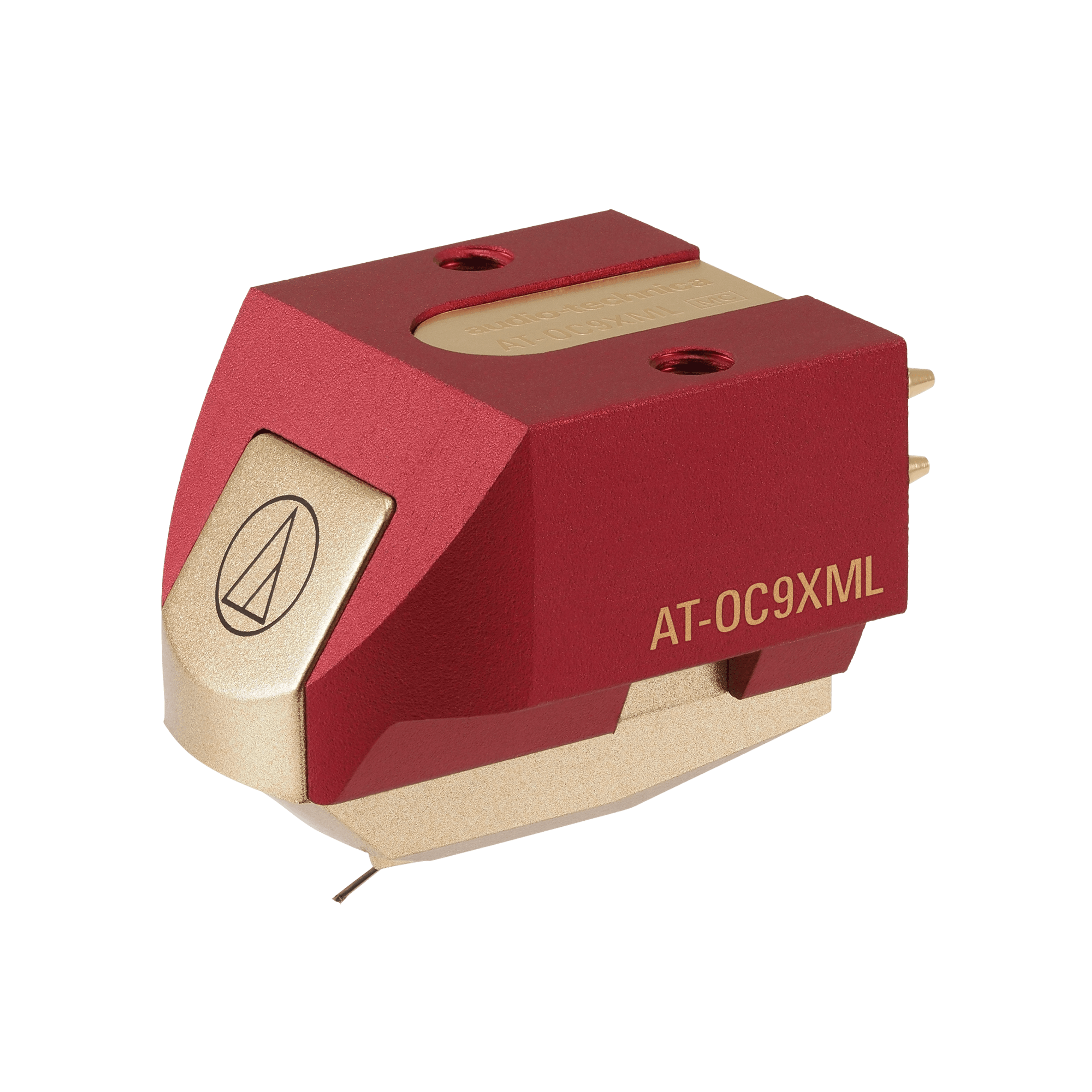

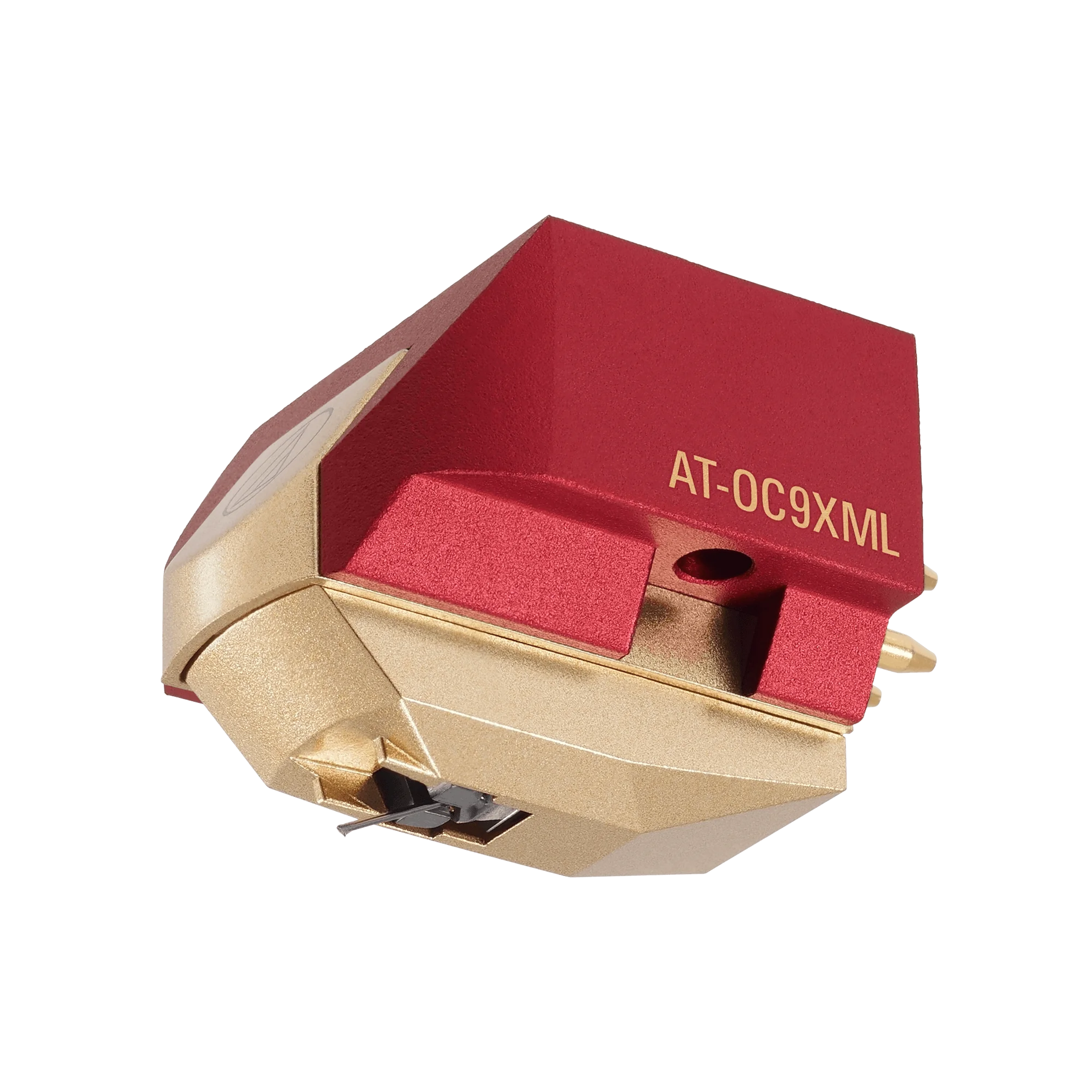

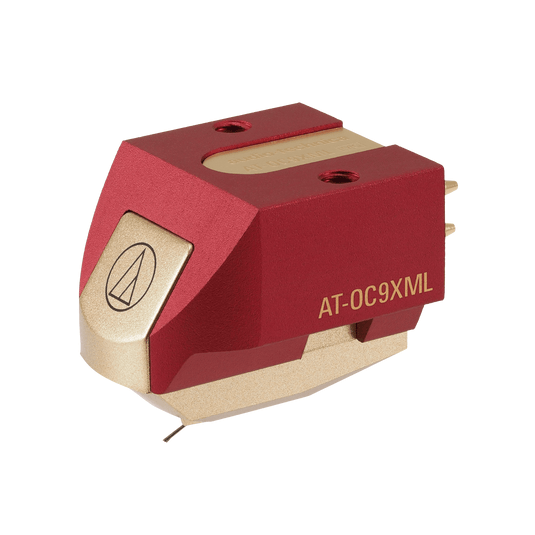

Audio Technica AT-OC9XML Dual Moving Coil Cartridge

$1,349.99
Available on order
We can order this item from our supplier. It usually ships from our store within 3–4 business days if the supplier has it in stock.
Qty
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

The AT-OC9XML Dual Moving Coil cartridge with Microlinear stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion. Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Microlinear stylus on a boron cantilever that tracks the record groove with incredible accuracy, low distortion and high-transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Cartridge

  • Dual Moving Coil (MC) cartridge
  • 0.4mV output
  • Aluminium body
  • 1/2” threaded mount
  • Weight: 7.6g

Stylus

  • MicroLine nude stylus (2.2 × 0.12 mil)
  • Nude boron cantilever
  • Nude square shank construction
  • Tracking force: 1.8–2.2g (2.0g recommended)

Performance

  • Frequency response: 20Hz–47kHz
  • Channel separation: 27dB (1kHz)
  • Channel balance: 1.0dB
  • Recommended load impedance: ≥100Ω
  • PCOCC copper coil wiring

Dimensions

  • Size: 17.3 × 16.8 × 25.7mm
  • Weight: 7.6g

Included

  • Non-magnetic screwdriver
  • Stylus brush
  • Plastic stylus protector
  • 2 washers
  • 4 pairs of mounting screws (5mm, 8mm, 10mm & 12mm)
