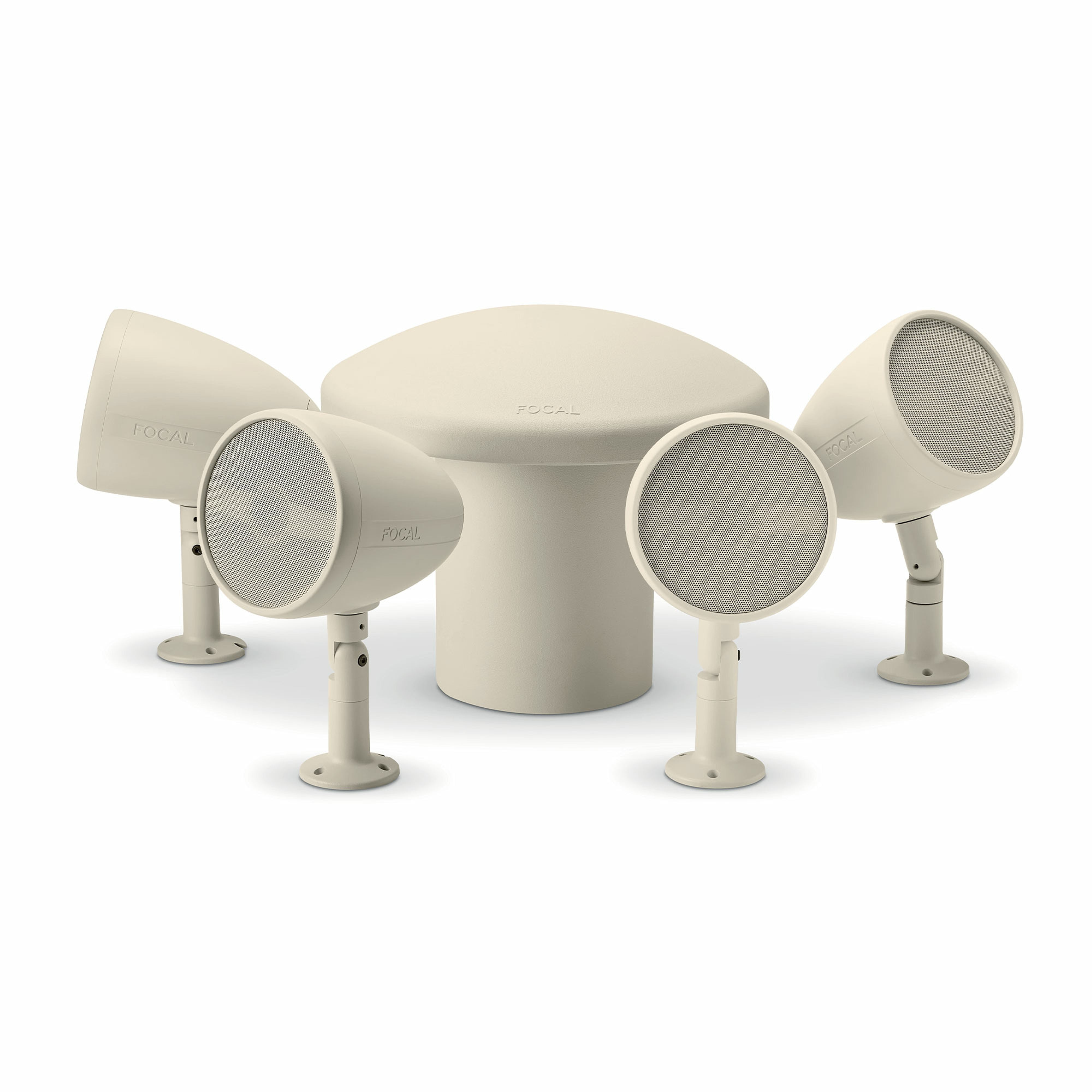

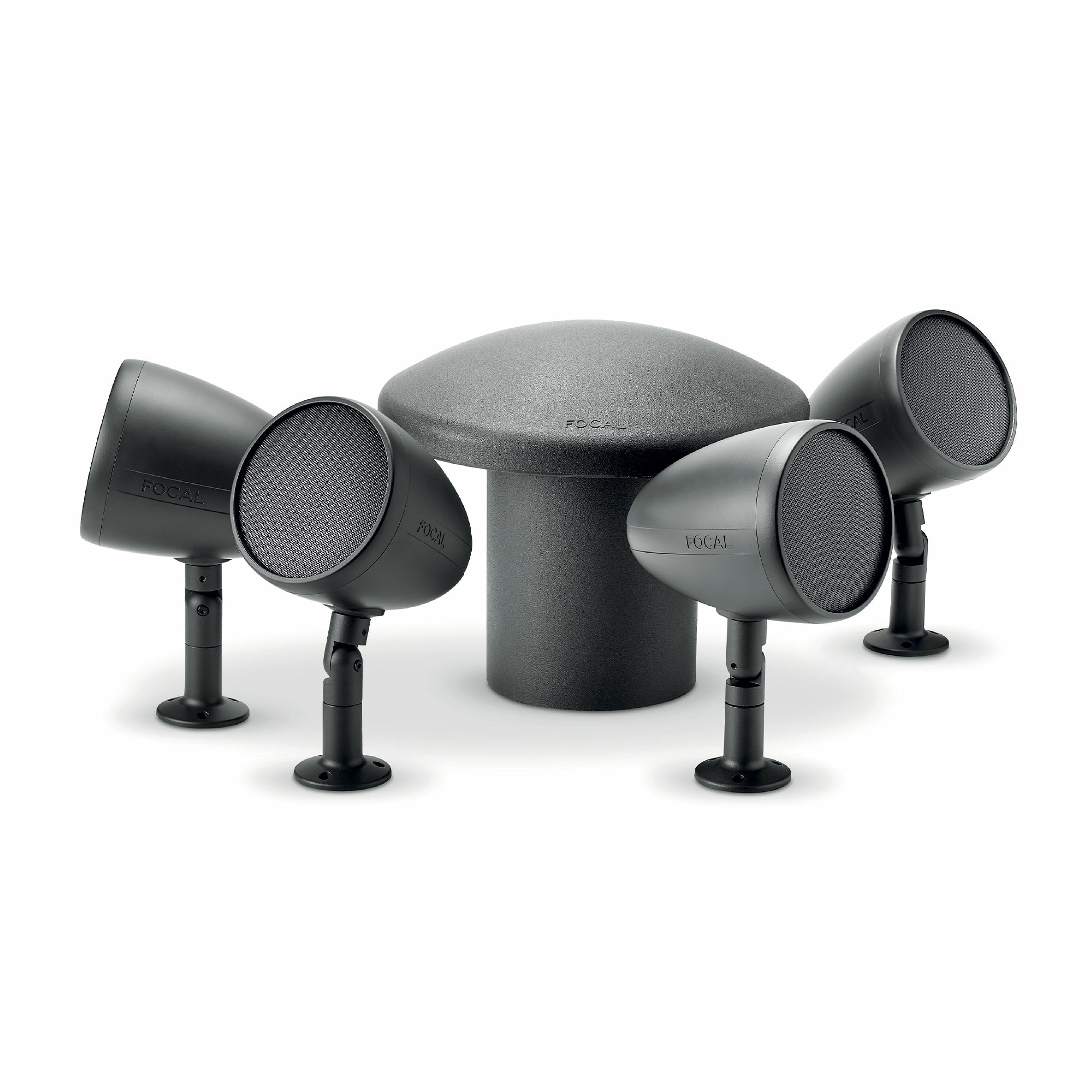

FOCAL OD 4.1 Outdoor Speaker / Sub Pack

• Elegant design, blends seamlessly into any setting
• Four OD SAT 5 loudspeakers and one OD SUB 12 subwoofer
• Outstanding sound quality for outdoors
• Loudspeakers: fastening brackets supplied for in-ground and/or in-wall installation
• IP55 certification (water and dust)
• 8Ώ and 70V/100V compatible

Type of speaker

• OD SAT 5

Speaker drivers

• 5" (12.7cm) Bass/Mid-range, Iris IP cone
• 1" (2.5cm) Aluminium 'M'-shaped tweeter

Bandwidth

• 90Hz – 28kHz

Impedance

• 8Ω

Minimal impedance

• 5.2Ώ – 250Hz

Sensitivity

• 88dB

Power

• 50W RMS – 100W Peak

Recommended amp power 8Ώ

• 20W – 100W

Recommended RMS power 70/100V

• 40W

Maximum power (70/100V)

• X

High-pass, roll-off

• 100Hz, 24dB/Oct – 100Hz, 24dB/Oct

Transformer positions

• 70V – 100V/5W, 10W, 20W, 40W

Temperature tolerance

• -20°/65°

IP rating

• IP55

Angle coverage

• 90°

Dimensions (LxHxD)

• 125/8x125/8x81/4" (32x32x21cm)

Weight

• 5.5lbs (2.5kg)

Type of speaker

• OD SUB 12

Speaker drivers

• 12" (30.5cm) woofer with Iris IP cone

Bandwidth

• 40Hz – 120Hz

Impedance

• 8Ω

Minimal impedance

• 5Ώ–55Hz

Sensitivity

• 90dB

Power

• 100W RMS – 400W Peak

Recommended amp power 8Ώ

• 50W – 300W

Recommended RMS power 70/100V

• 150W

Maximum power (70/100V)

• 300W (150W RMS)

High-pass, roll-off

• X

Transformer positions

• X

Temperature tolerance

• -20°/65°

IP rating

• IP55

Angle coverage

• 360°

Dimensions (LxHxD)

• 15x361/4x22" (38x92x56cm)

Weight

• 41.8lbs (19kg)
