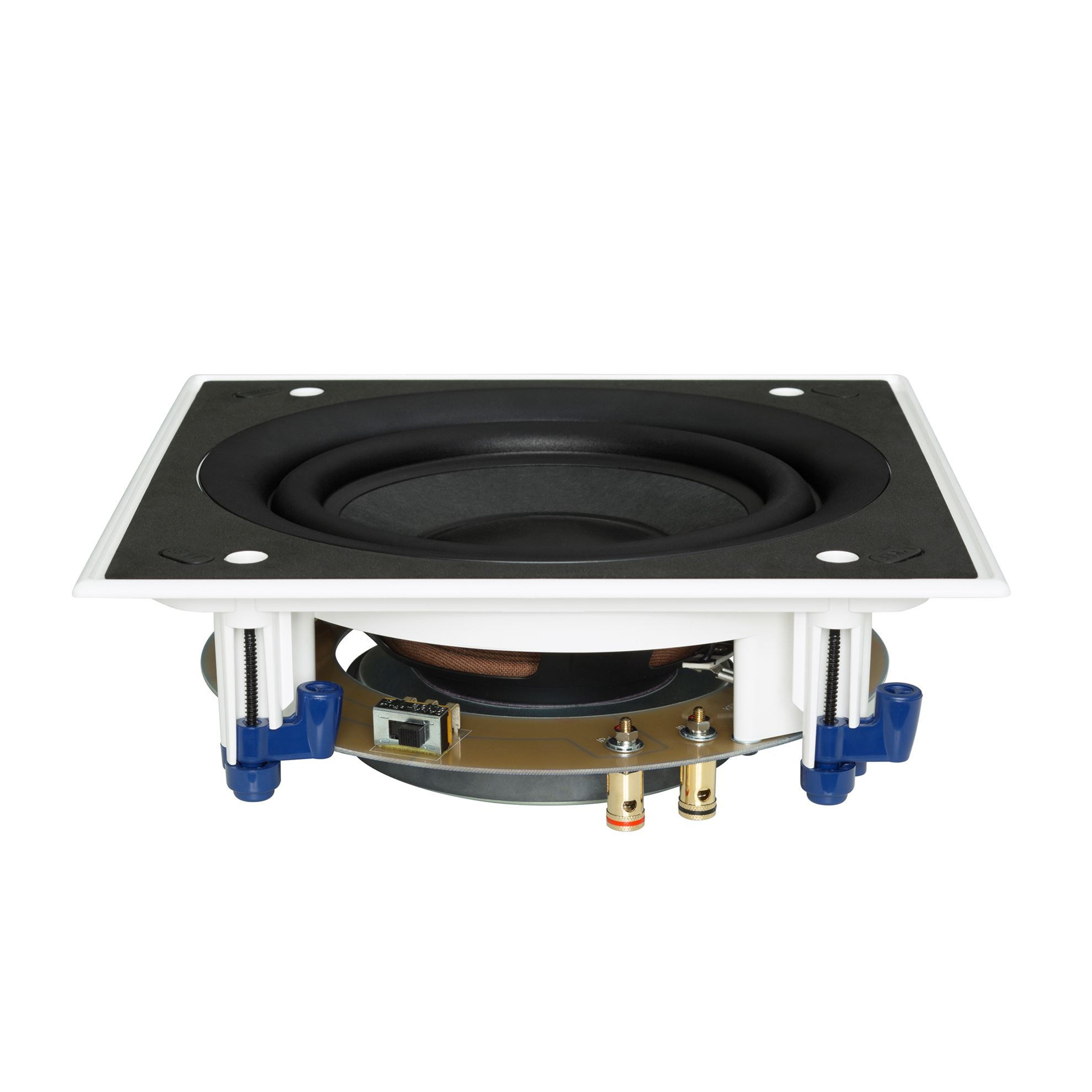

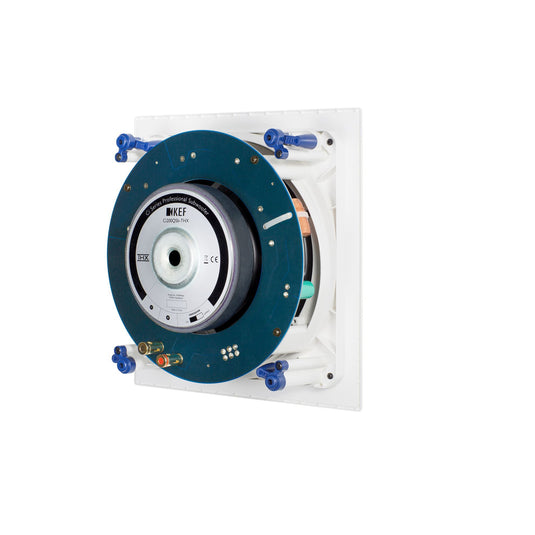

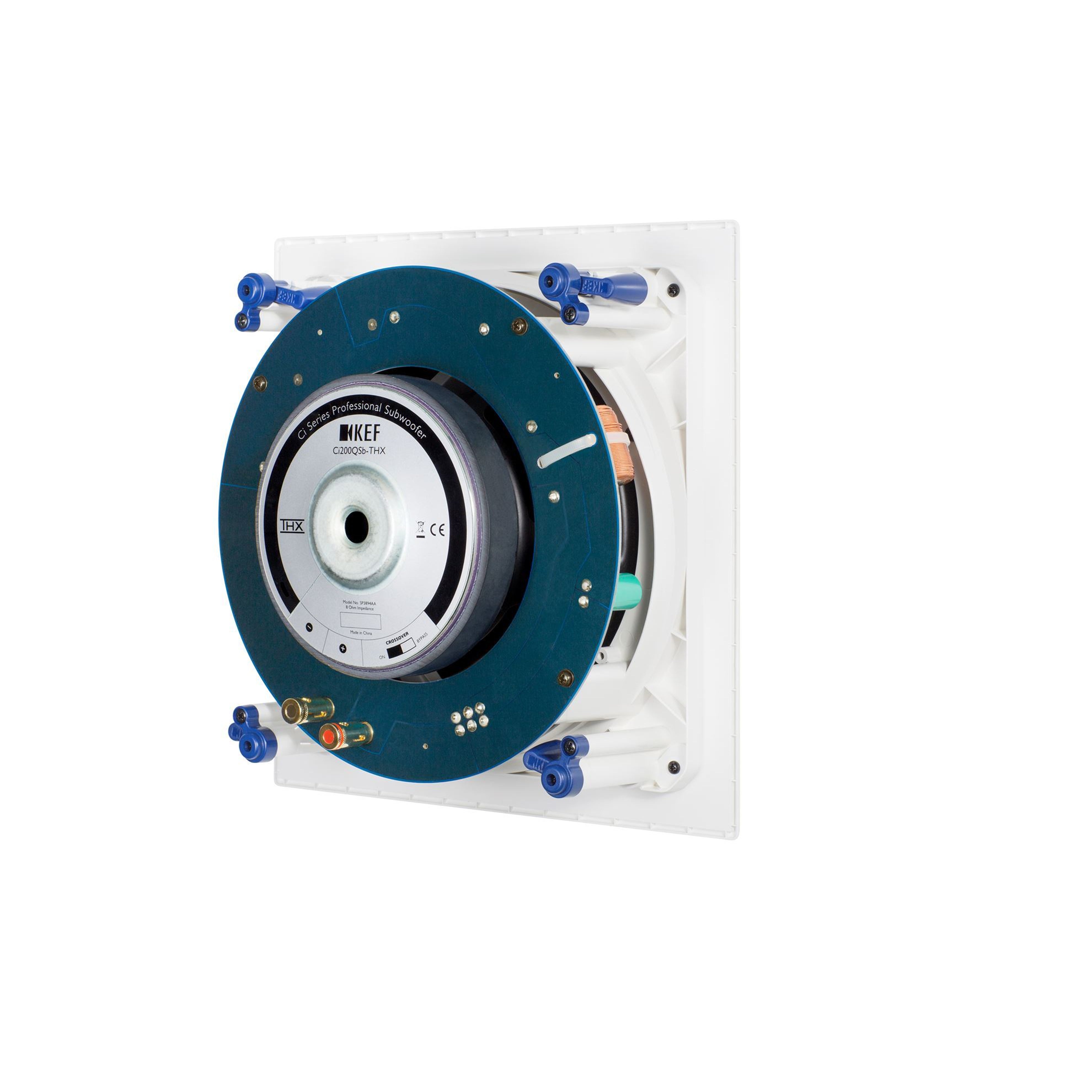

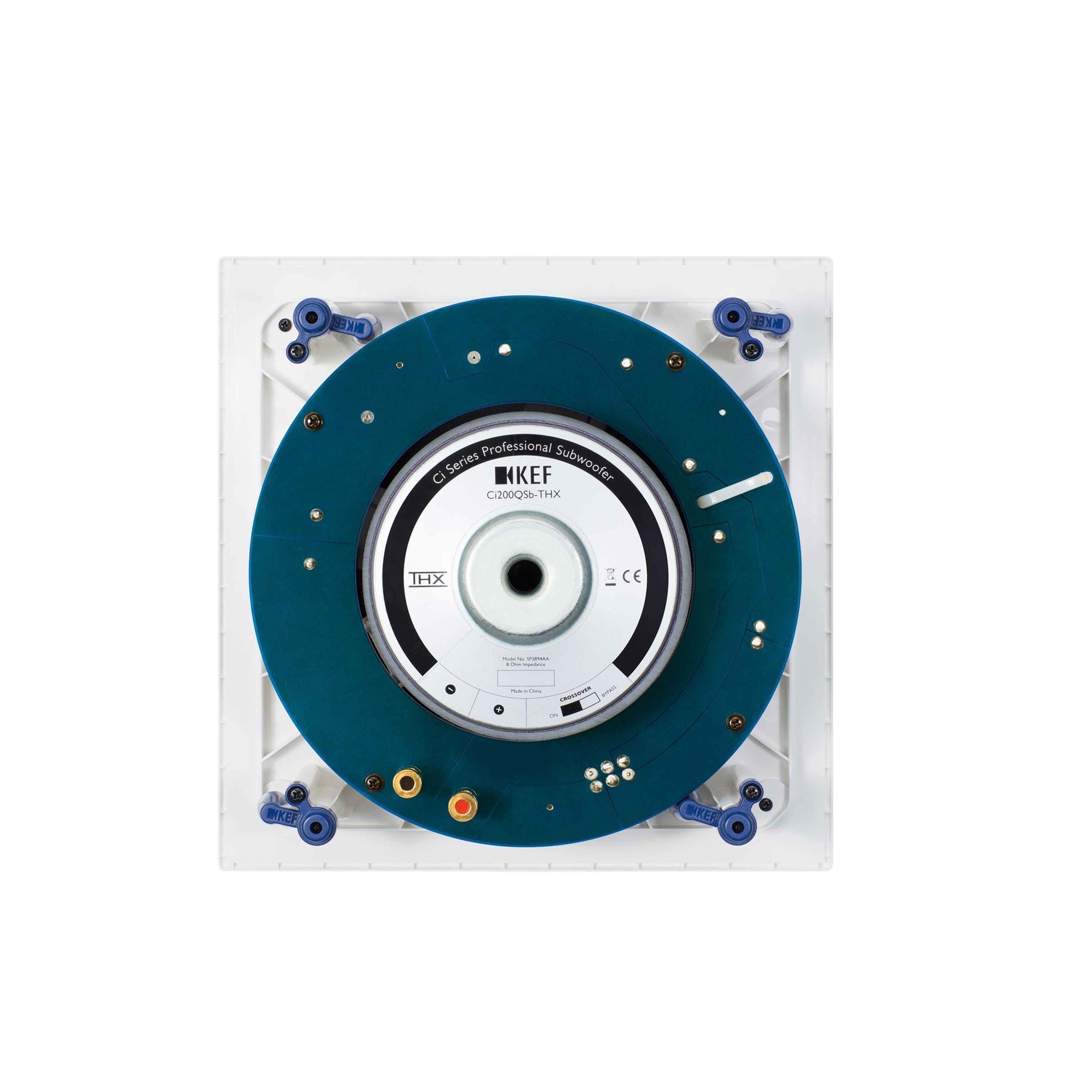

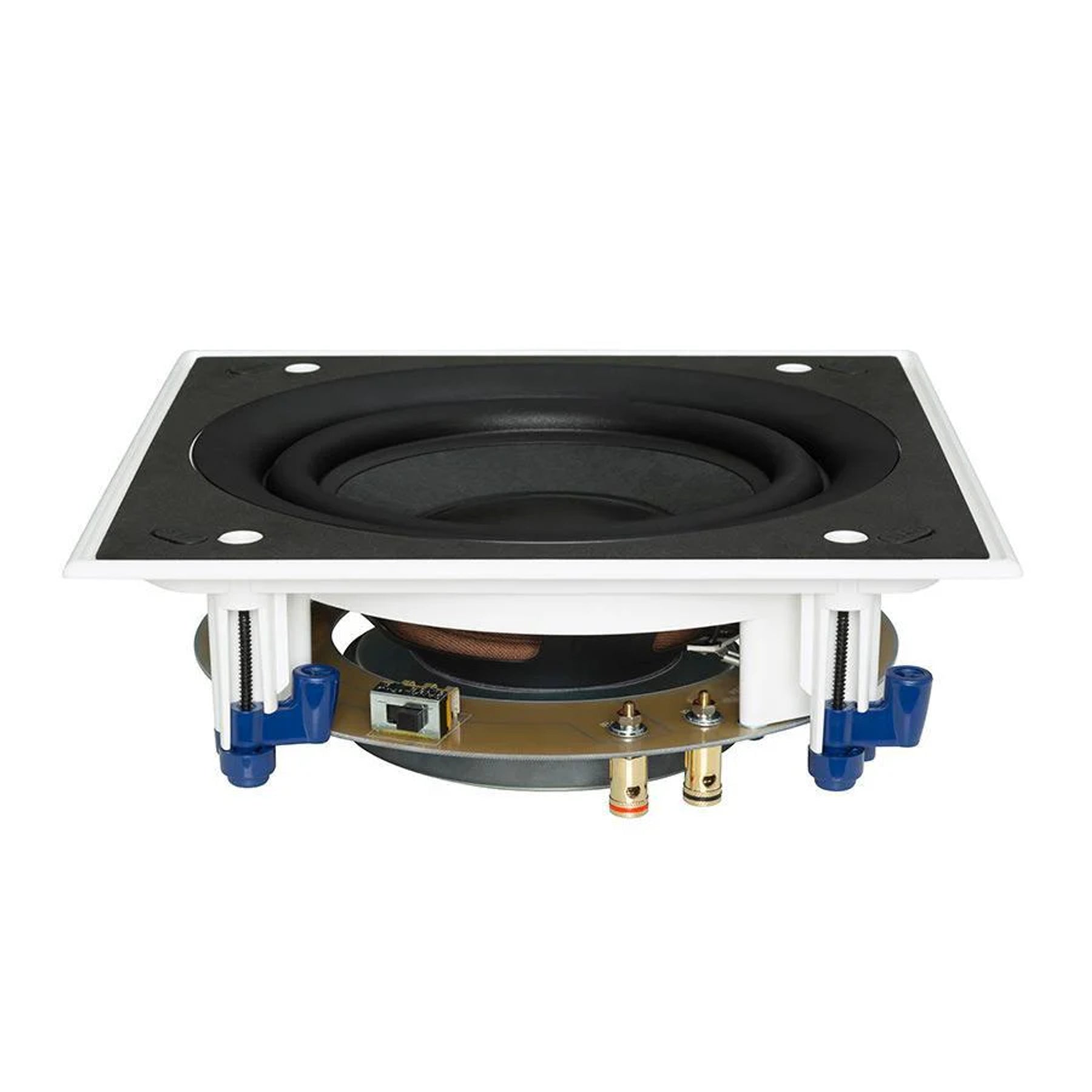

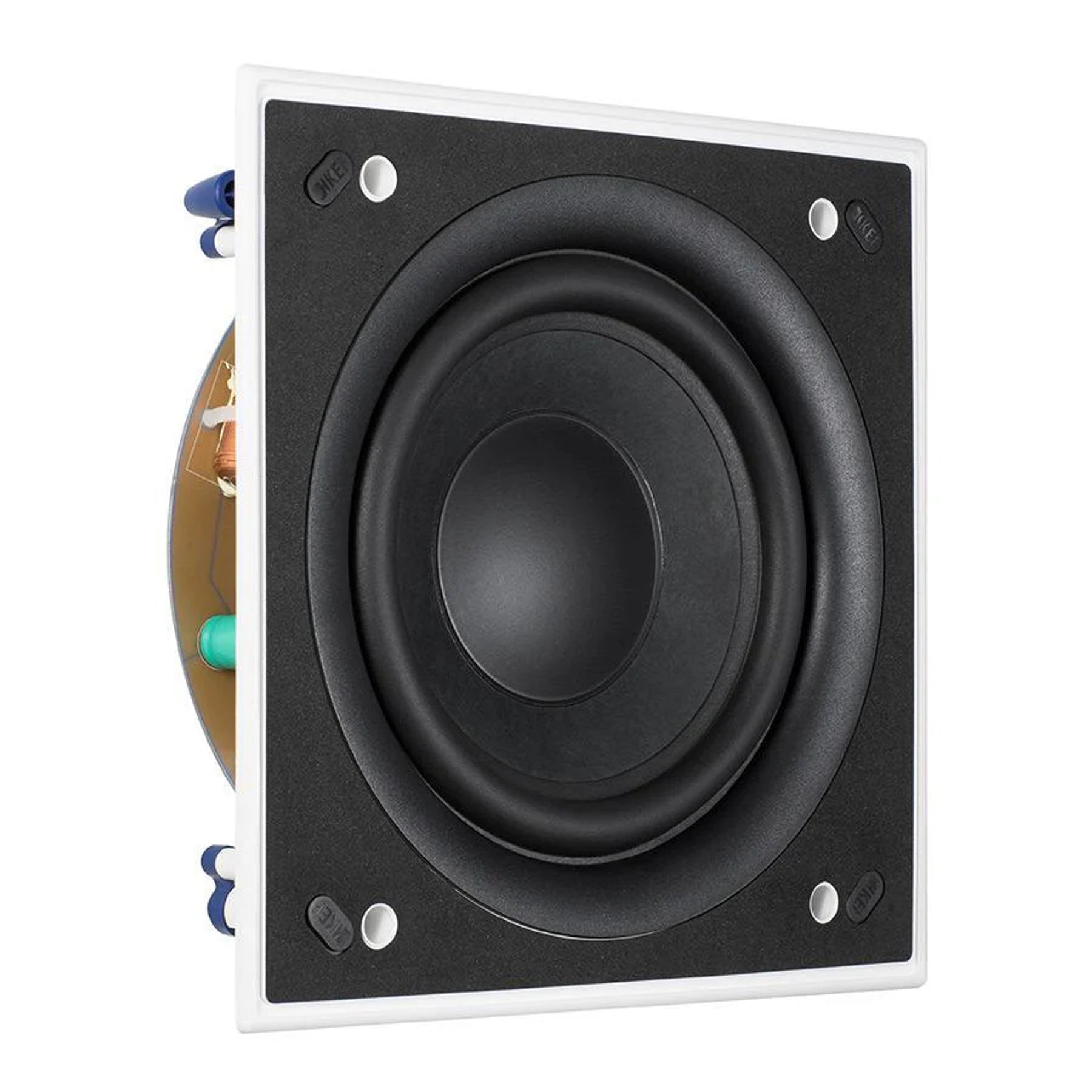

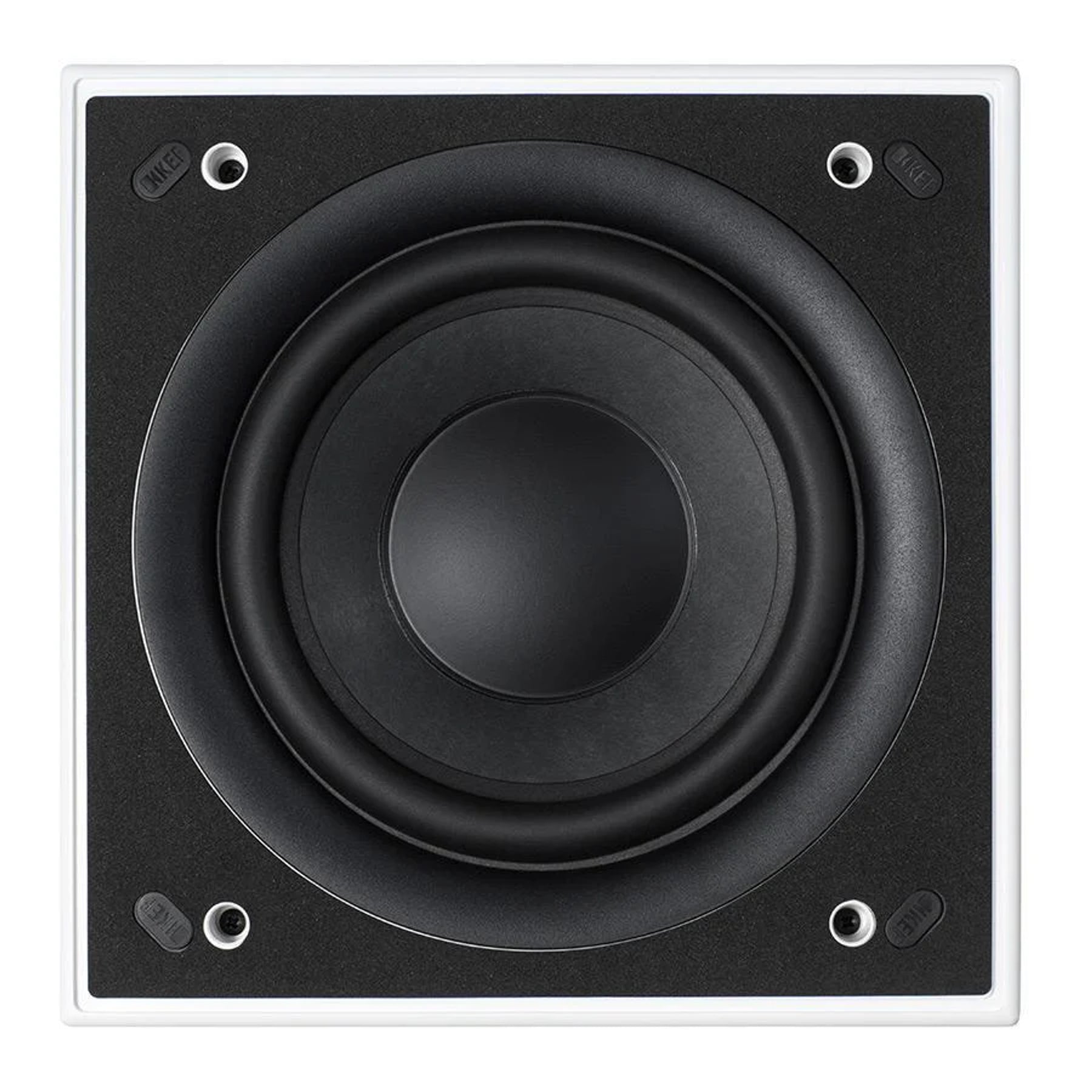

KEF CI200QSB-THX Ultra Thin Bezel 8'' Wall Subwoofer

$1,499.00
Available from Supplier

We can order in this item from our supplier, it usually ships from our store in 3-4 business days if the supplier has this item in stock.

Qty
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

THX ULTRA Certified 200mm Subwoofer

Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality.



Ci200QSb-THX

Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality. With a powerful high-output 200mm (8in.) sub-bass driver, the Ci200QSb-THX can be used in passive mode to supplement the LF output of KEF’s Ci series in-wall or in-ceiling speakers. In Active mode, when 2 pair of the Ci200QSb-THX subwoofer are powered by the powerful 250Wx 2 KEF KASA500 System Amplifier the performance meets THX Select2 specification. When 4 pair of the Ci200QSb-THX are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Ultra2 specification.

  • THX Certified Ultra2 / Select2

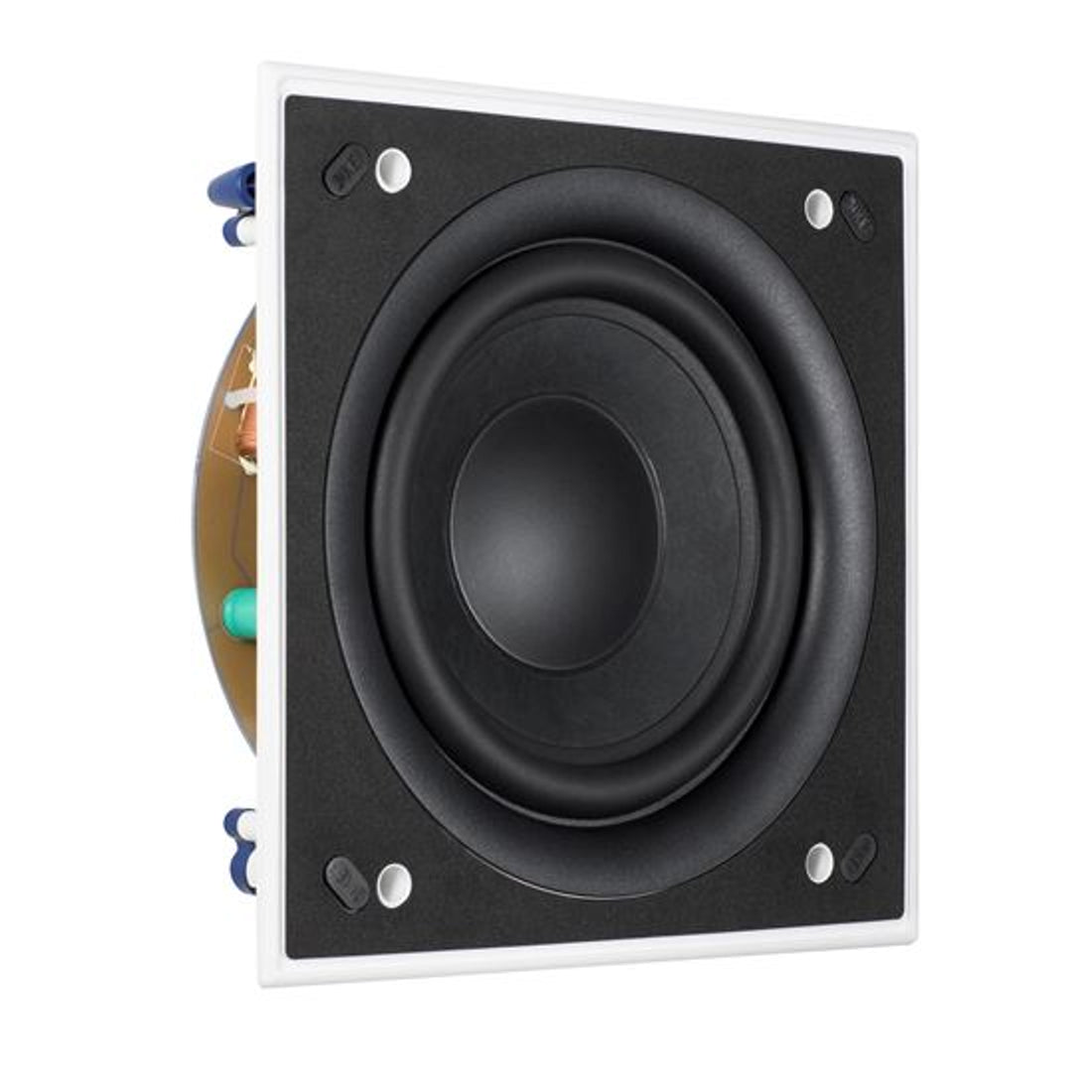

  • 200mm (8in.) woofer unit with extended bass response

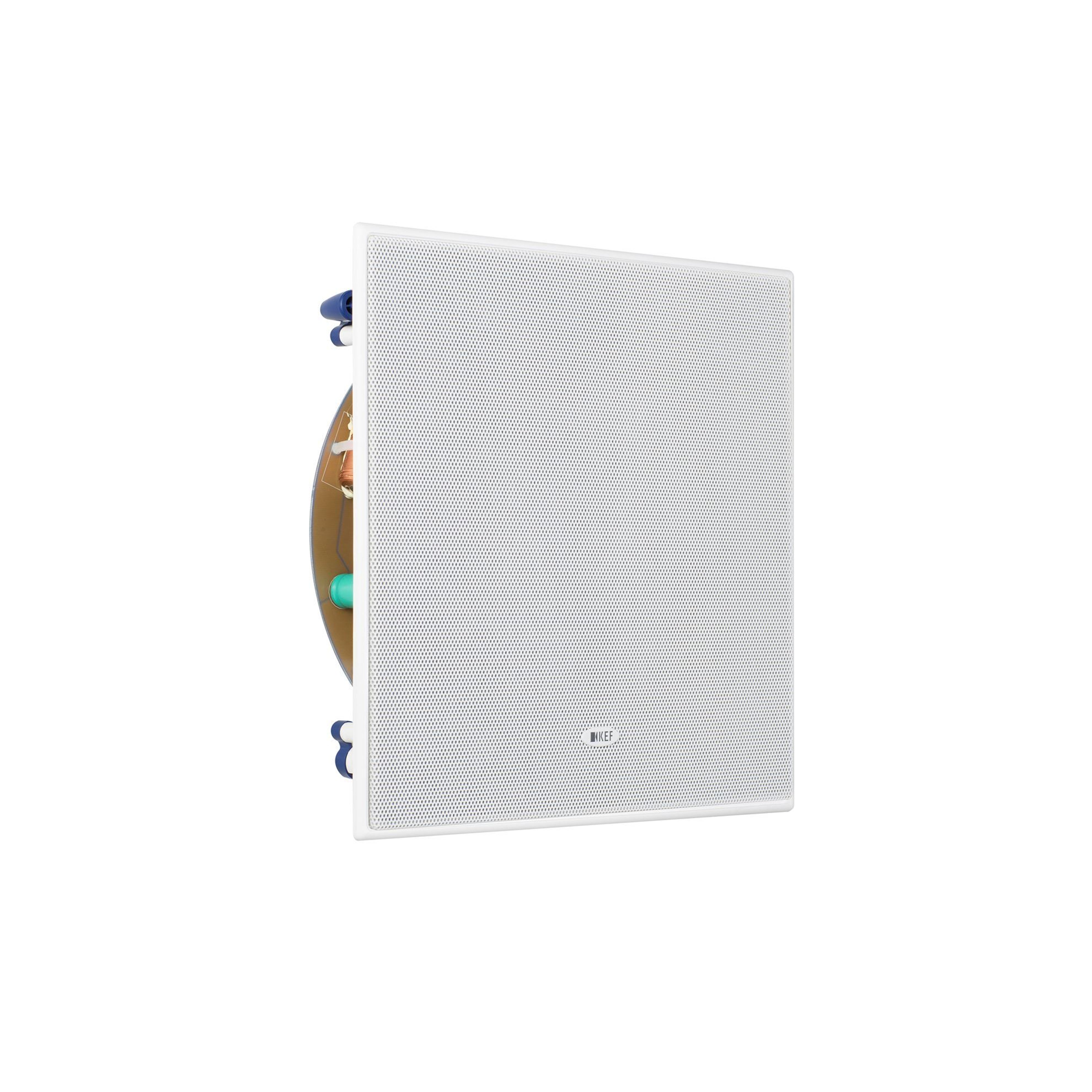

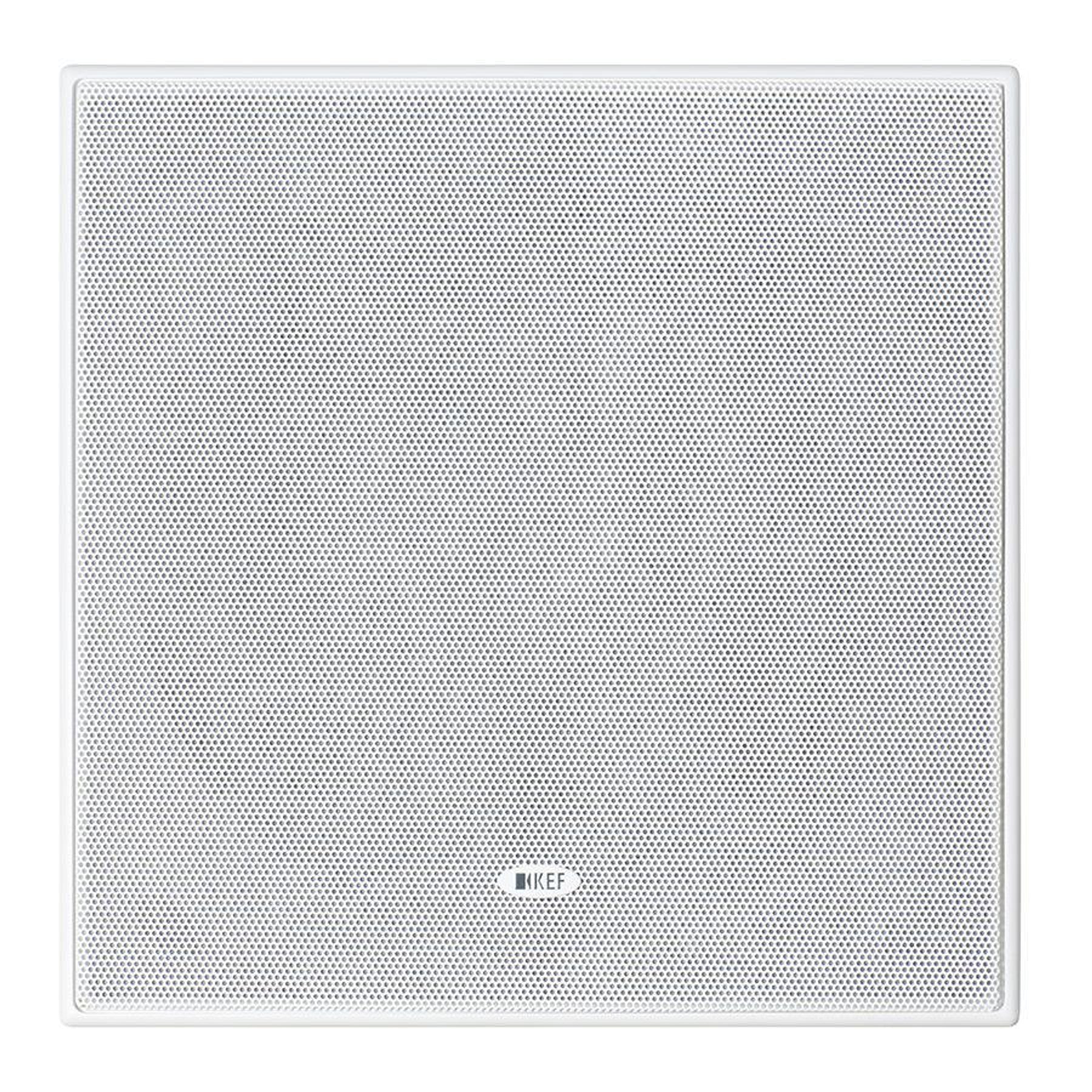

  • Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
  • Fast, versatile installation on virtually any surface via dogleg

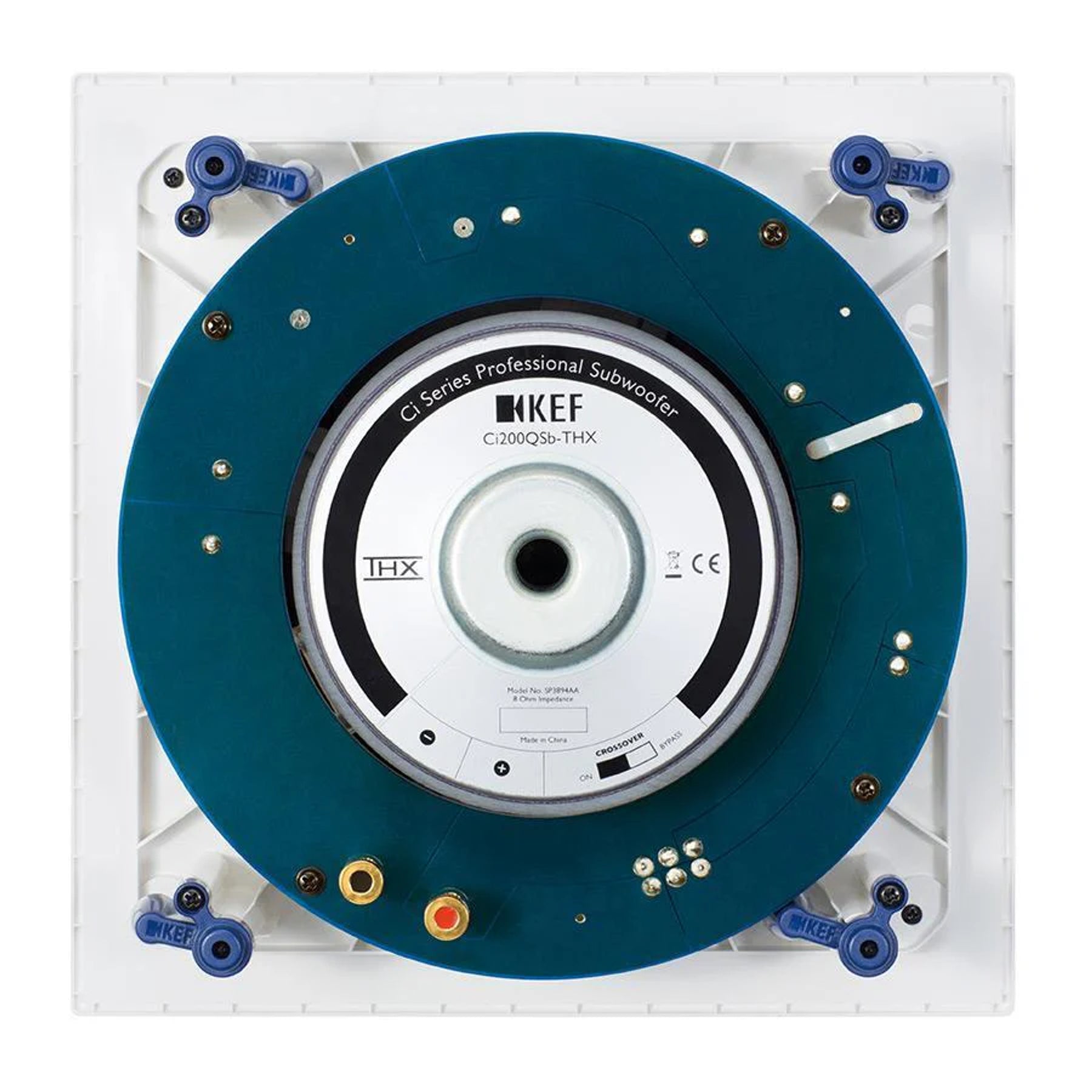

  • Can be used in passive mode with internal crossover or active mode with KEF’s
  • KASA500 System Amplifier for THX certified performance
  • Sold in Pairs

Nominal Impedance

  • 6 Ohm - Passive Mode (Crossover "ON")
  • N/A - Active Mode (KASA500)

Sensitivity

  • 85dB - Passive Mode (Crossover "ON")
  • N/A - Active Mode (KASA500)

Crossover Frequencies

  • 100Hz - Passive Mode (Crossover "ON")
  • N/A - Active Mode (KASA500)

Frequency Response

  • 40Hz-100Hz - Passive Mode (Crossover "ON")
  • 18Hz-140Hz - Active Mode (KASA500)

Drive Units

  • LF: 200mm (8 in.)

Recommended Amplifier Power

  • 10-150W - Passive Mode (Crossover "ON")
  • KASA500 - Active Mode (KASA500)

Product External Dimension (H X W X D)

  • Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.)

Cut-Out Dimensions (H X W)

  • 238 x 238 mm (9.37 x 9.37 in.)

Mounting Thickness

  • Ceiling Thickness (Maximum): 40mm (1.58 in.)
  • Ceiling Thickness (Minimum): 6mm (0.24 in.)

Mounting Depth From Surface

  • 101.6mm (4 in.)

Optional Rough In Frame

  • RIF200S

Net Weight

  • 3.3kg (7.28 lbs)
