MODEL 10

MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.

Inspired by our past, engineered for our future

MODEL 10 is the new reference in amplifier design and the most powerful and finest sounding integrated amplifier Marantz has ever made.

The Best of The Best

From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and all new HDAM modules, MODEL 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.

Sound Master Tuned

MODEL10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail, lower distortion, and higher dynamic range than ever before.

Iconic Details Remimagined for Tomorrow

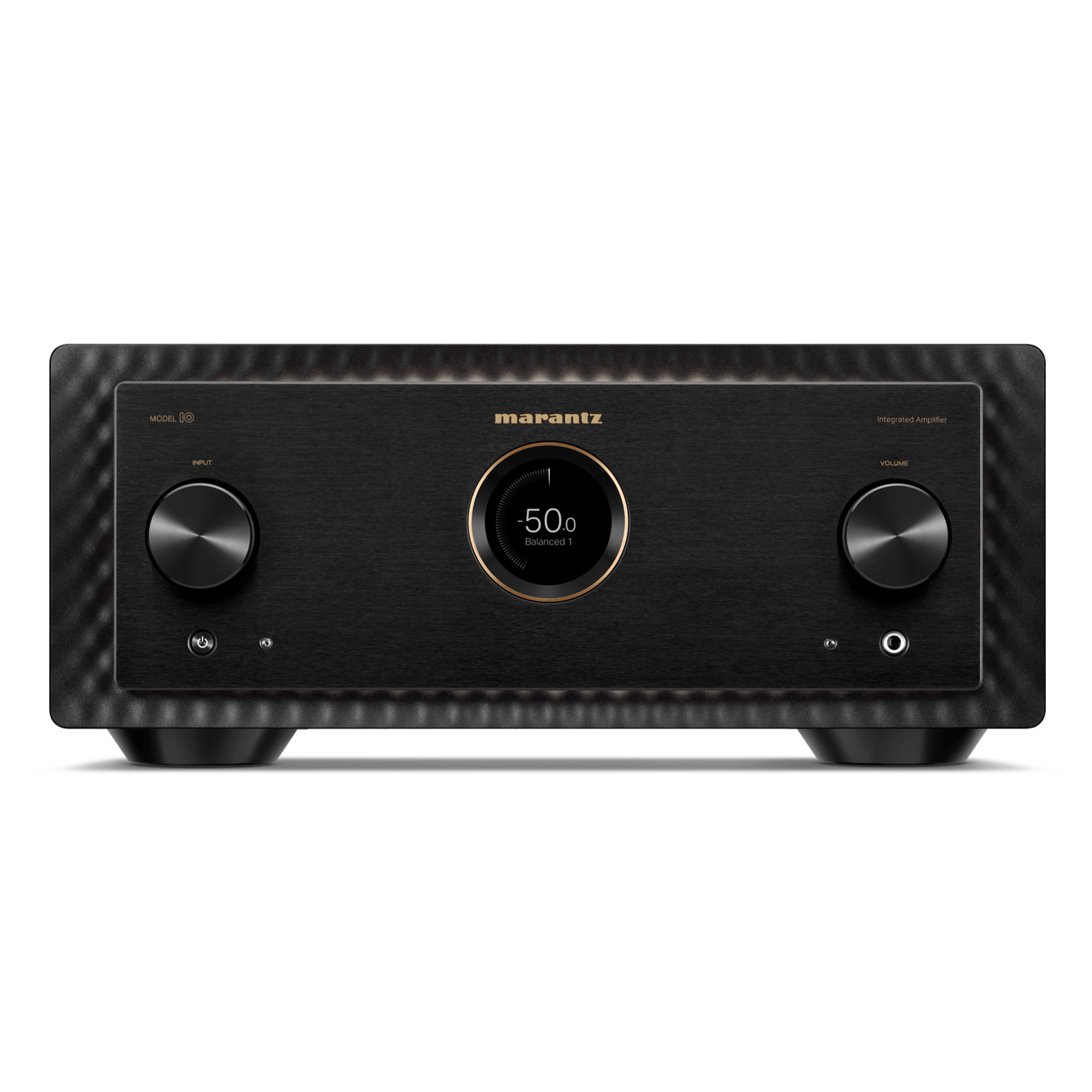

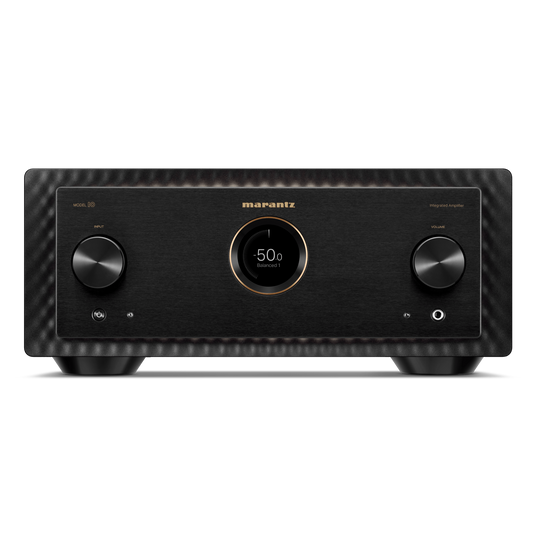

Designed with a brushed aluminum front, MODEL 10 is encased in a copper-plated, triple-layered chassis with illuminated mesh cover grille. Lighting inside the amplifier showcases the circuit boards, high-quality components, and specially designed transformer case. In a nod to the Marantz design DNA, MODEL10’s porthole houses a HD TFT Color Display for volume and input selection, along with a digital level meter that behaves like vintage analog meters.

Crafted in Shirakawa

MODEL 10 was conceived and engineered in our facilities in Shirakawa, Japan to deliver the highest performance.

2 Channels
250 Watts per Channel
All-New Marantz SMPS
Fully balanced dual mono amplifiers
Phono MM/MC
Copper-plated chassis

Unit (W × H × D mm)

440 × 192 × 473

Cabinet Size

440 × 192 × 422

Net weight

33.7kg

Packaging Dimensions (W × H × D mm)

600 × 379 × 540

Packaging gross weight

39.0kg

Carton Color

1 Color (Material color: Brown Printing: Black)

Panel Color

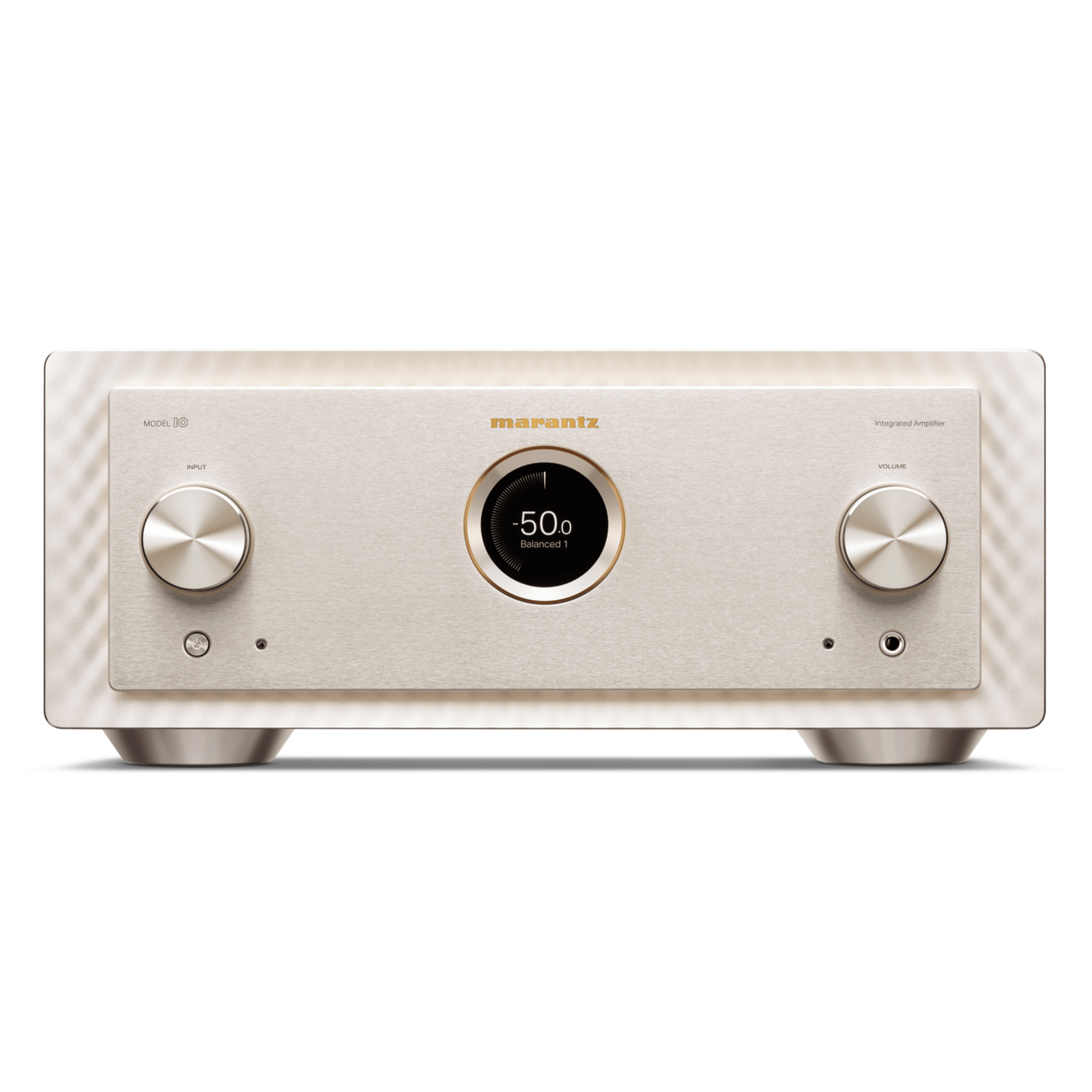

Black / Marantz Champagne

Front (Center) Panel

Anodized machined aluminum

Back-shell

AAnodized machined aluminum

Front panel illumination

Yes (All sides, Dimmer)

Side cover

Aluminum (Thickness: Max 15.8mm)

Top cover

Aluminum (Thickness: 6mm)

Top cover (Center) ventilation hole material

Stainless mesh

Interior ilumination

Yes, dimmable

Rear Panel

Copper Plated

Chassis Material

Copper Plated

Bottom Layer / Bottom plate

Triple layer Copper plated

Front panel illumination

Yes (All sides, Dimmer)

Volume Knob

Solid aluminum (Bearing construction)

Input Selector

Solid aluminum (Bearing construction)

Foot

Solid Alminum Copper plated (H: 18.5mm)

Heatsink for Power Amplifier

Extruded Aluminum

Rated Output Power

250W + 250W (8ohm,20Hz-20kHz,THD 0.05 %)
500W + 500W (4ohm,20Hz-20kHz,THD 0.05 %)

Speaker Impedance

4~16ohm

Frequency Response

5Hz~60kHz +0dB/-3dB
20Hz~20kHz +0dB/-0.3dB

Total Harmonic distortion

0.005%
(125W, 8ohm, 20-20kHz)
(CCIF IMD, DFD IMD)

Damping Factor

500 (8ohm, 20Hz-20kHz)

Input Sensitivity: Phono input

MM: 3.6 mV / 36 kohm
MC (Low): 400 μV / 33 ohm
MC (Mid): 400 μV / 100 ohm
MC (High): 400 μV / 390 ohm

RIAA Deviation

20 Hz - 20 kHz ±0.5 dB (MM/MC)

Phono Maximum Input

MM : 80mV
MC : 8mV

Input Sensitivity: CD/LINE/RECORDER

350 mV/41kohm (Unbalanced)
700 mV/36kohm

Input Sensitivity: Power Amp input

Unbalanced: 1.58V / 41kohm (Gain : 29dB)
Balanced: 3.16V / 15kohm (Gain : 24dB)

SN Ratio

PHONO (MM): 88dB
PHONO (MC): 76dB
CD: 122dB
Balanced: 122dB

Headphone Output Level

130mW / 32 ohms

Tone Control

BASS : 50Hz ±10dB
TREBLE : 15kHz ±10dB

Power Consumption

270W
0.1W (at Standby)

Phono Input

Yes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
PHONO (MC Low): 400 μV / 33Ω
PHONO (MC Mid): 400 μV / 100Ω
PHONO (MC High): 400 μV / 390Ω
PHONO (MM): 3.6 mV / 39kΩ

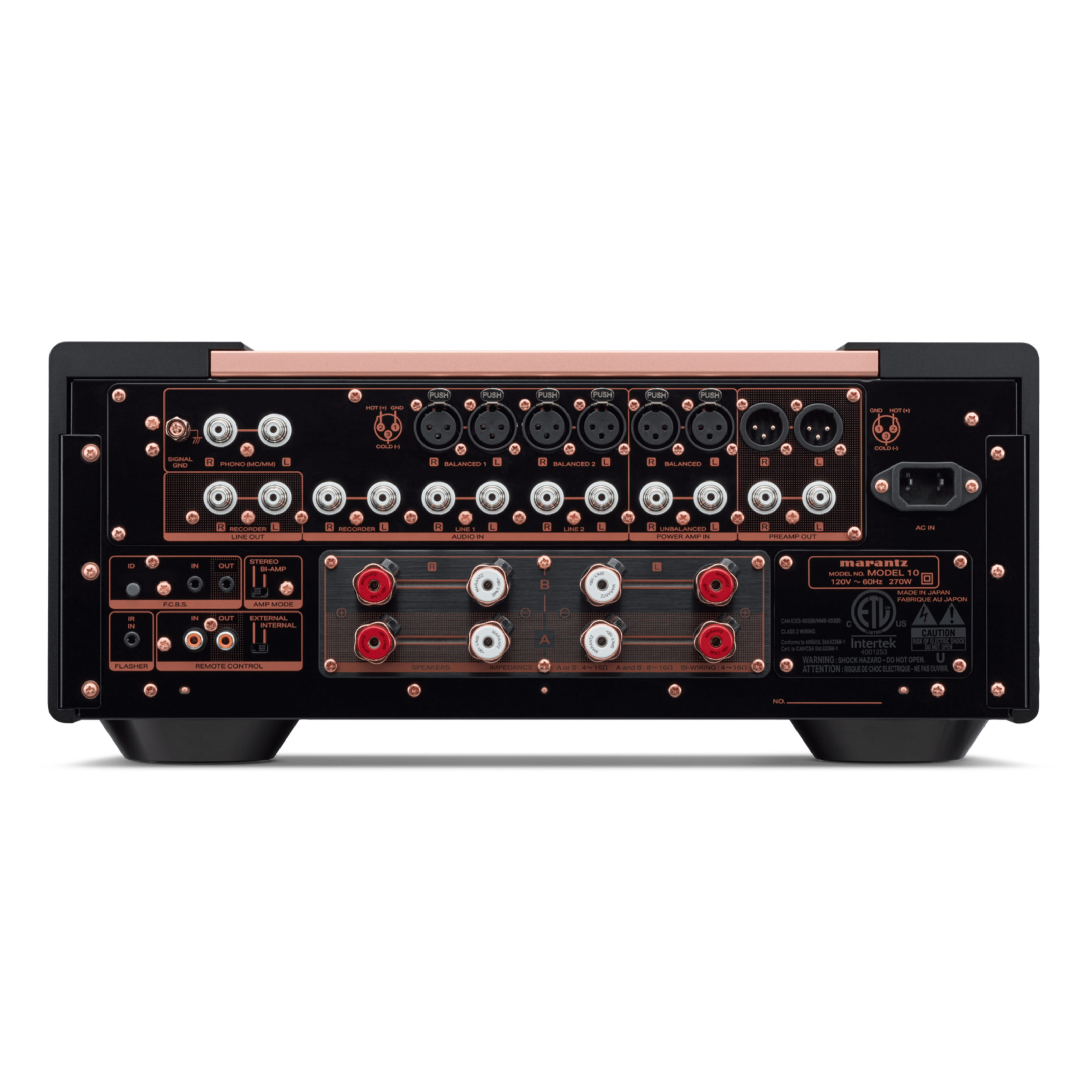

Analog Input (include Phono) / REC Out (RCA)

4 /1

(LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
(RECORDER: Thick nickel plated independent terminals)

Balanced XLR input

Power Amp Direct

Yes [RCA (Thick nickel plated independent terminals) / XLR]

Pre out

Yes [RCA (Thick nickel plated independent terminals) / XLR]

2 sets of Speaker Output

Yes (Bi-wiring)

Speaker Terminal

Marantz Original SPKT-100+
2 (High quality and high-purity copper plated)

Headphone Output

1
(Turns off the speaker automatically when headphone is inserted)

Remote Control Bus Terminal

Yes (RC-5 In / Out)

Remote Internal / External Switch

Flasher Input

AC Inlet

Other

F.C.B.S. (Floating Control Bus System)

Remote Controller

10 series Universal Remote control

Unit control (Button)

Tact Switch : 1
POWER

Unit control (Knob)

2
VOLUME, INPUT SELECTOR

LED

POWER: 1 White
Protection: 1 Orange
Illumination (Edge): White
Interior: White

Front Panel Display

New HD TFT Color Display

Dimmer for Front Display

20 steps

Level meter

Yes (HD Display)

Volume Display

-infinity/-99.5dB - 0dB / 0.5 step (default)
0-100 / 0.5 step
switchable

Last Function Memory

Auto Standby Mode

Remote Controller

RC004PMND

Battery

Yes (AAA ×2)

Power Cord

Yes (ALL region / Audio Grade / OFC)

Other

CoA card
