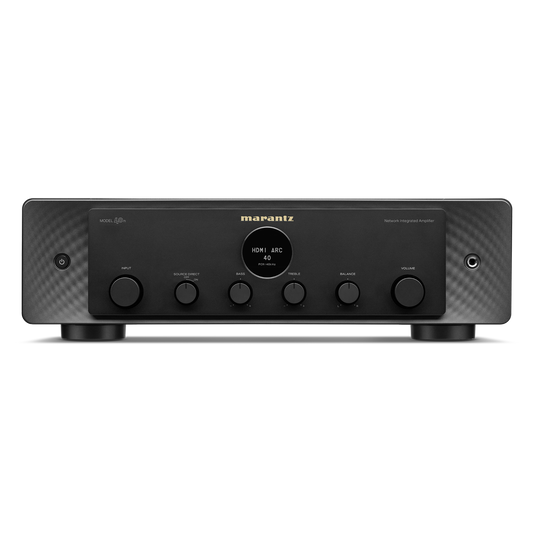

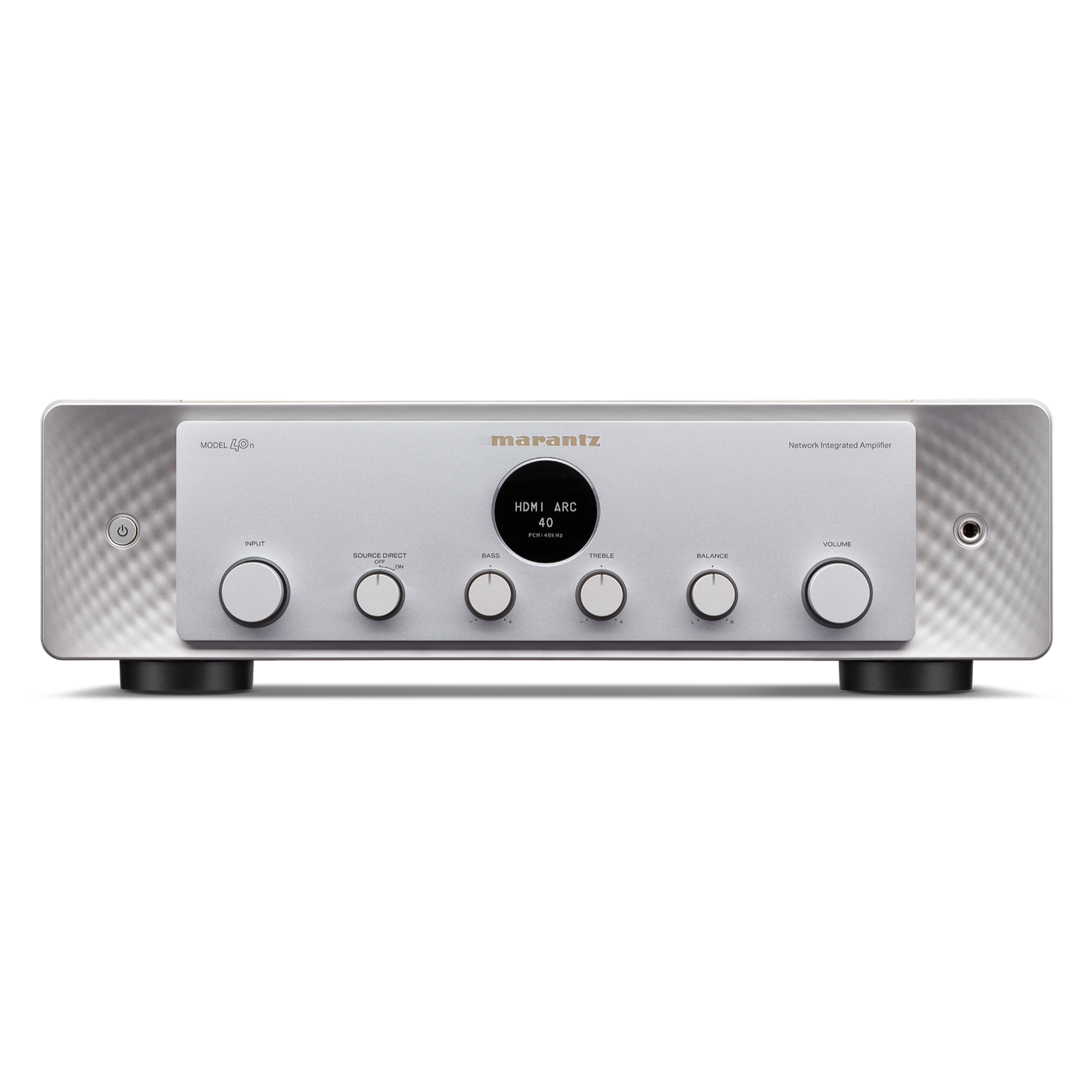

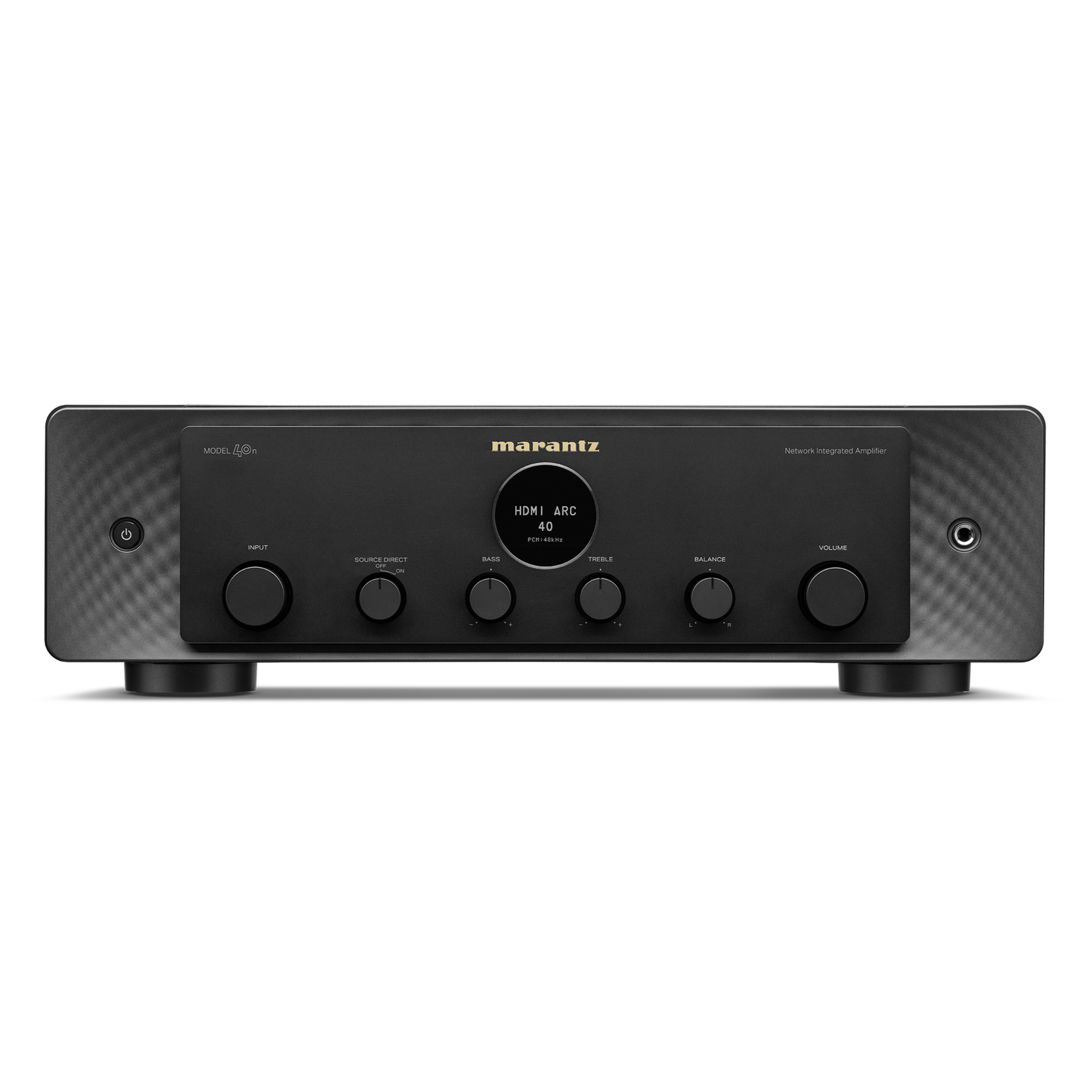

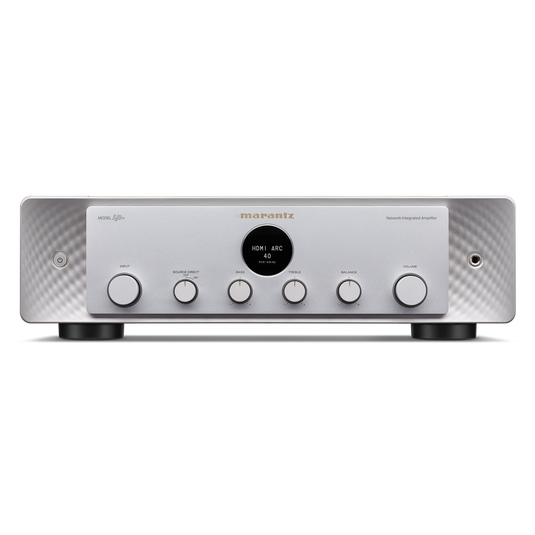

MODEL 40n Integrated Stereo Amplifier with Streaming Built-In

Digital heart and analog soul. MODEL 40n unlocks the high-resolution sound of your favorite digital music streams (Spotify, Apple Music, Pandora, Tidal, and more) and your own music file libraries over AirPlay, Bluetooth, and HEOS®. Enjoy audio from your TV and its connected devices using built-in HDMI ARC (Audio Return Channel) connectivity. Enjoy rich, warm, Marantz sound from any source.

Just Add Speakers - Everything else for The Most Musical Sound is built-in
Built for Streaming - Use with Spotify, Apple Music, Tidal, AirPlay, Bluetooth and more—powered by HEOS®
Sound Master Tuned - Expertly crafted and tuned for The Most Musical Sound
Musical Power - 70 watts per channel to drive your favorite speakers
Voice Control - Works with Amazon Alexa, Google Assistant, or Apple Siri
Luxurious Industrial Design - Adds class to any environment
HDAM Circuit - Unique technology preserves every detail in your favorite sounds
Marantz Musical Phono EQ - Built-in MM phono stage makes adding a turntable easy
Whole-Home Hi-Fi - Connect with HEOS Built-in speakers for a whole-home system that allows you to to sync or separate streams in each room

Output Power

70 W + 70 W (8 Ω)
100 W + 100 W (4 Ω)

Amplifier Design & Performance

HDAM-SA3 power amplifier circuit
Double-shielded toroidal power transformer
Class A/B amplification with electric volume control
Frequency response: 5 Hz – 50 kHz
Total harmonic distortion: 0.02% (20 Hz – 20 kHz, 8 Ω)
Damping factor: 100

Tone & Listening Modes

Bass and treble controls, balance adjustment
Source Direct mode for shortest signal path

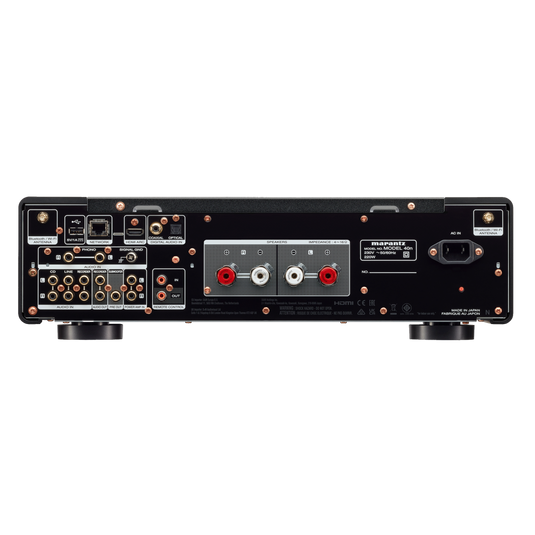

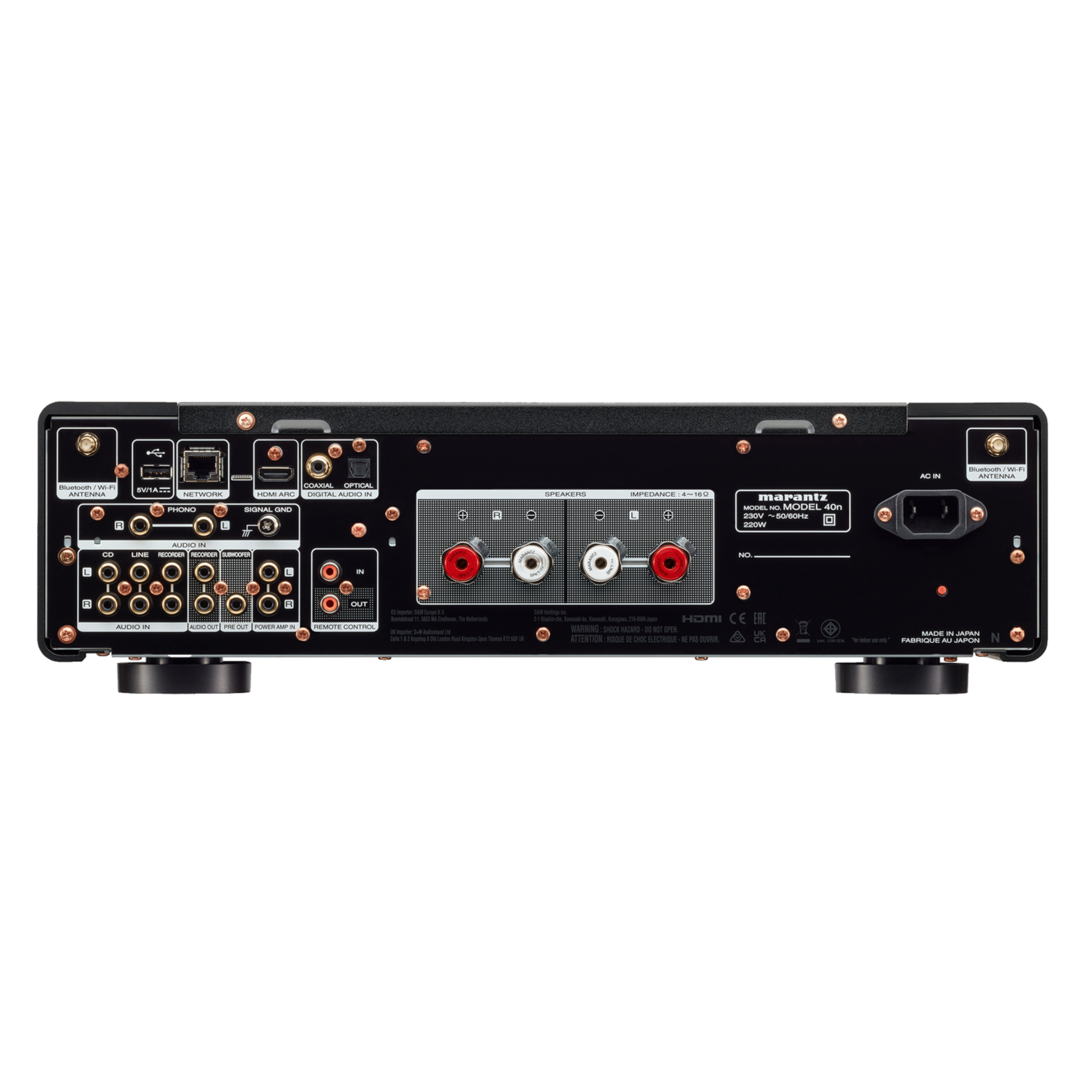

Inputs & Connectivity

Phono input (MM) with Marantz Musical Phono EQ
4 analogue inputs (Phono, CD, Line, Recorder) + 1 RCA record out
1 optical input, 1 coaxial input
HDMI input (PCM only, non-ARC)
USB-A (rear) for mass storage playback (5V / 1A)

Outputs

Speaker terminals: Marantz SPKT-1+
Subwoofer pre-out with selectable low-pass filter (40 / 60 / 80 / 100 / 120 Hz)
Power amp direct input (external preamp support)

Streaming & Control

HEOS app control
System remote control support
RC-5 remote control bus (in / out)

Input sensitivity:

Phono (MM): 2 mV / 47 kΩ
CD/Line: 220 mV / 20 kΩ
Power amp input: 1.6 V / 15 kΩ

Signal-to-noise ratio:

Phono (MM): 87 dB
CD: 106 dB

Design & Build

Aluminium front panel with dimmable edge lighting
Aluminium knobs (volume, input, tone controls)
Steel top cover, SECC chassis with thickened double-layer base

Power & Dimensions

Power consumption: 220 W (0.3 W standby)
Product dimensions: 17.4" × 5.1" × 17" (W × H × D)
Weight: 36 lb 13 oz

Included

System remote control
Quick start guide
AC power inlet and internal power supply

Marantz_Model_40n_Data_Sheet.pdf
