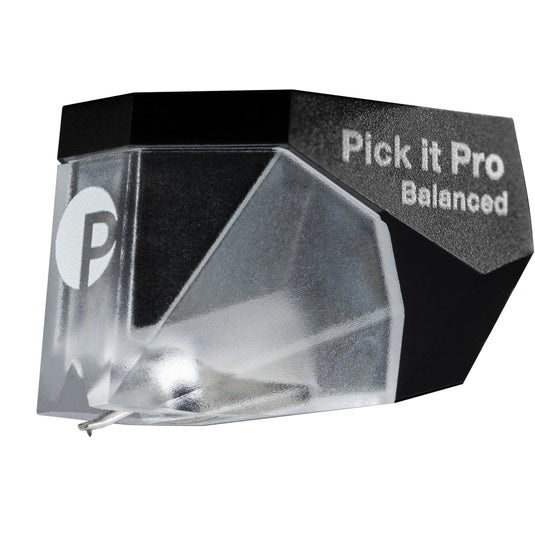

Pro-Ject Pick It PRO Balanced Moving Magnet Cartridge

$349.00
Available from Supplier
We can order in this item from our supplier, it usually ships from our store in 3-4 business days if the supplier has this item in stock.
Qty
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

True Balanced compatible MM Cartridge

The new Pick it PRO Balanced cartridge is a revised version of the Pick it PRO which allows you a "True Balanced“ signal transmission. Standard MM cartridges cannot be used with a symmetrical connection, as it would result in a difference between the left and right channel. The big advantage of a balanced connection is its ability to remove picked up noise and interference. Our "True Balanced" cable range offers you the perfect cable to connect your turntable to either the Phono Box S3 B or Phono Box DS3 B.



Made In Europe

We have always been looking for the best price/performance ratio, with perfect manufacturing quality and „Made in Europe“. For this reason, we decided to work with Ortofon to develop a unique range of cartridges. Thanks to the excellent manufacturing skills of Ortofon we were able to produce a very special cartridge: The Pick it PRO.

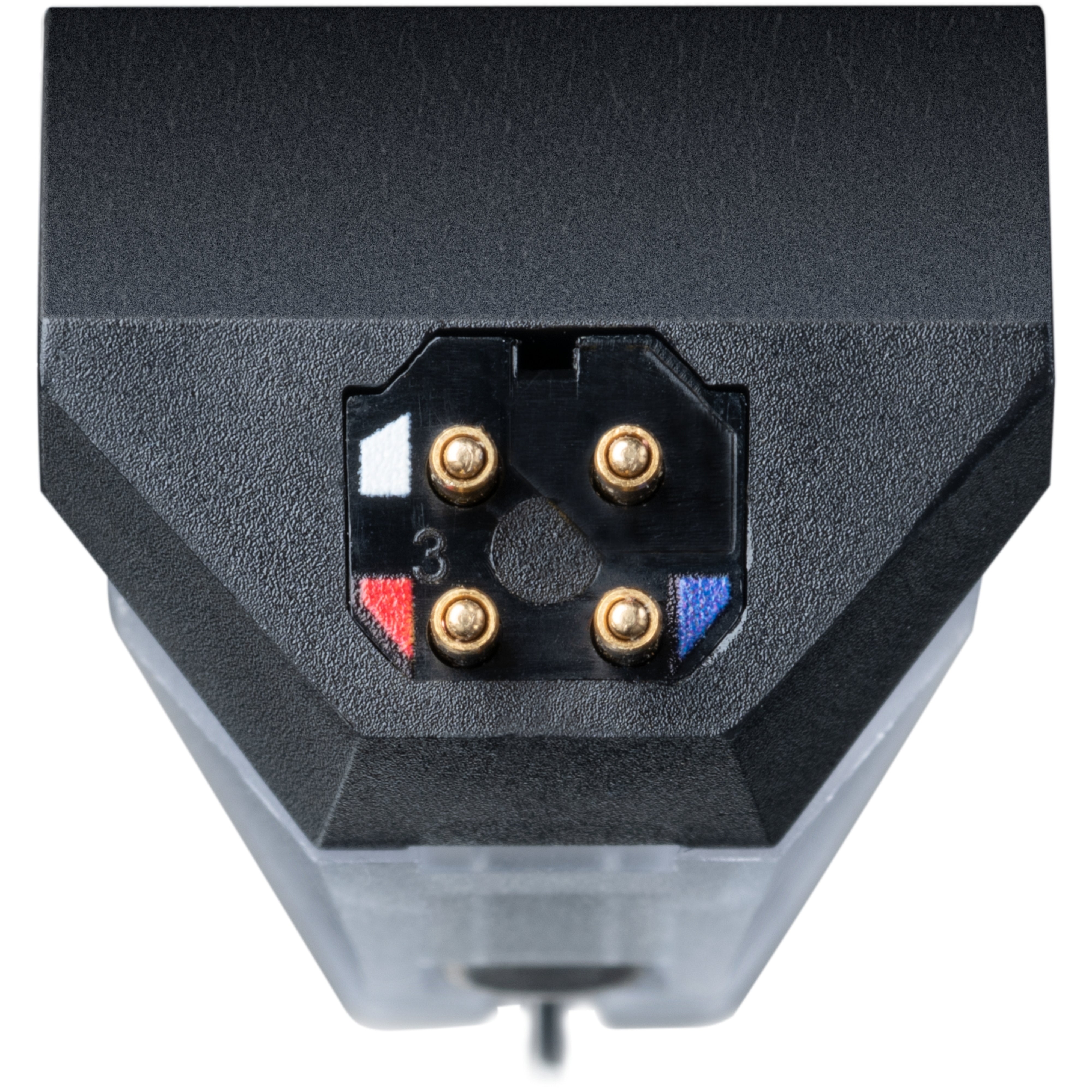

Balanced Connection

The big advantage of a balanced connection is its ability to remove picked up noise and interferences. Our „True Balanced“ cable range offers you the perfect cable to connect your turntable to either the Phono Box S3 B or Phono Box DS3 B.

  • Moving Magnet principle
  • High fidelity
  • Very detailed with low distortion
  • Exceptionally lively & robust
  • Convinces with high a dynamic range
  • Simple and fast mounting
  • 1/2 inch mounting standard
  • Threaded holes for simple mounting without nuts
  • New transparent design
  • Made in Europe

Cartridge principle:

  • MM (Moving-Magnet)

Output voltage at 1 kHz:

  • 4 mV

Channel separation at 1 kHz:

  • 22 dB

Tracking ability at 315Hz:

  • 70 μm

Frequency response:

  • 20 - 20 000 Hz +/- 2dB

Stylus type:

  • Elliptical

Stylus tip radius:

  • r/R 8/18 μm

Tracking force, range:

  • 1,8 - 2,2 g (mN)

Tracking force, recommended:

  • 2,0 g (mN)

Tracking angle:

  • 20°

Internal impedance, DC resistance:

  • 750 Ohm

Internal inductance:

  • 450mH

Recommended load resistance:

  • 47kOhm

Recommended load capacitance:

  • 150-300pF

Cartriddge weight:

  • 7,2 g
