Rotel DX-3 Headphone Amplifier

$2,499.00

Available from Supplier

Colour

Qty

Shipping and delivery information

Request price match

Price match guarantee

Free shipping on all orders over $300

Authorised brand dealer

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Elegant, High-Performance Audio Companion

The Rotel DX-3 is the ultimate audio companion, combining the sophistication of an ESS Sabre DAC with an integrated headphone amplifier, all packaged in an elegant, space-efficient chassis. It renders audio with precision and supports a wide array of modern and legacy source inputs, including PC-USB (32-bit / 384kHz) with DSD 4X support, coaxial and optical (24-bit / 192kHz), wireless aptX™ HD Bluetooth, and RCA analog connections.

ESS Sabre DAC for Exceptional Resolution

At its core, the DX-3 is driven by the ESS Sabre ES9028PRO 8-channel DAC, ensuring exceptional digital-to-analog conversion. This allows music to be reproduced with ultimate resolution and maximized immersive soundstage, delivering a listening experience that captures every nuance and detail.

Powerful, Low-Distortion Headphone Amplifier

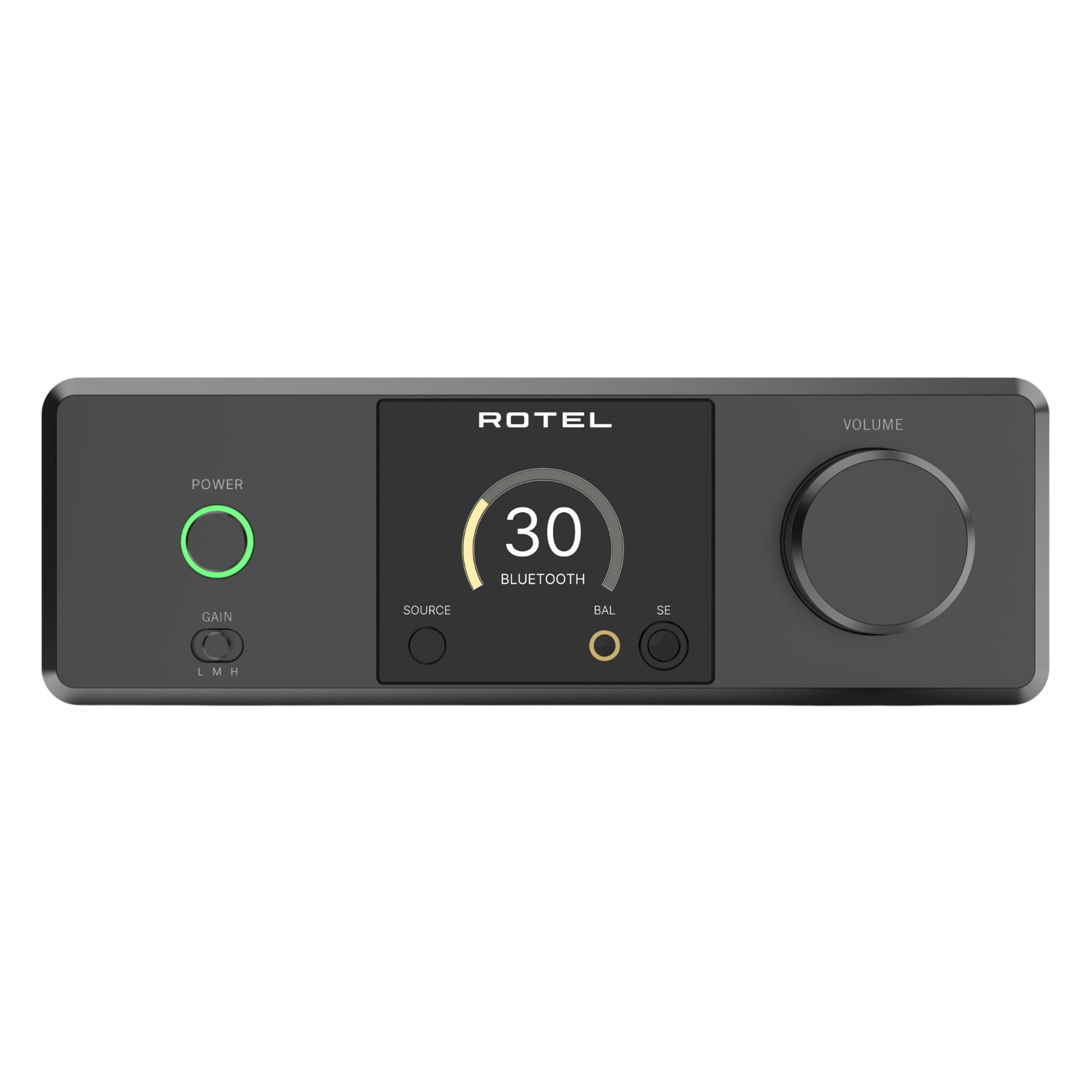

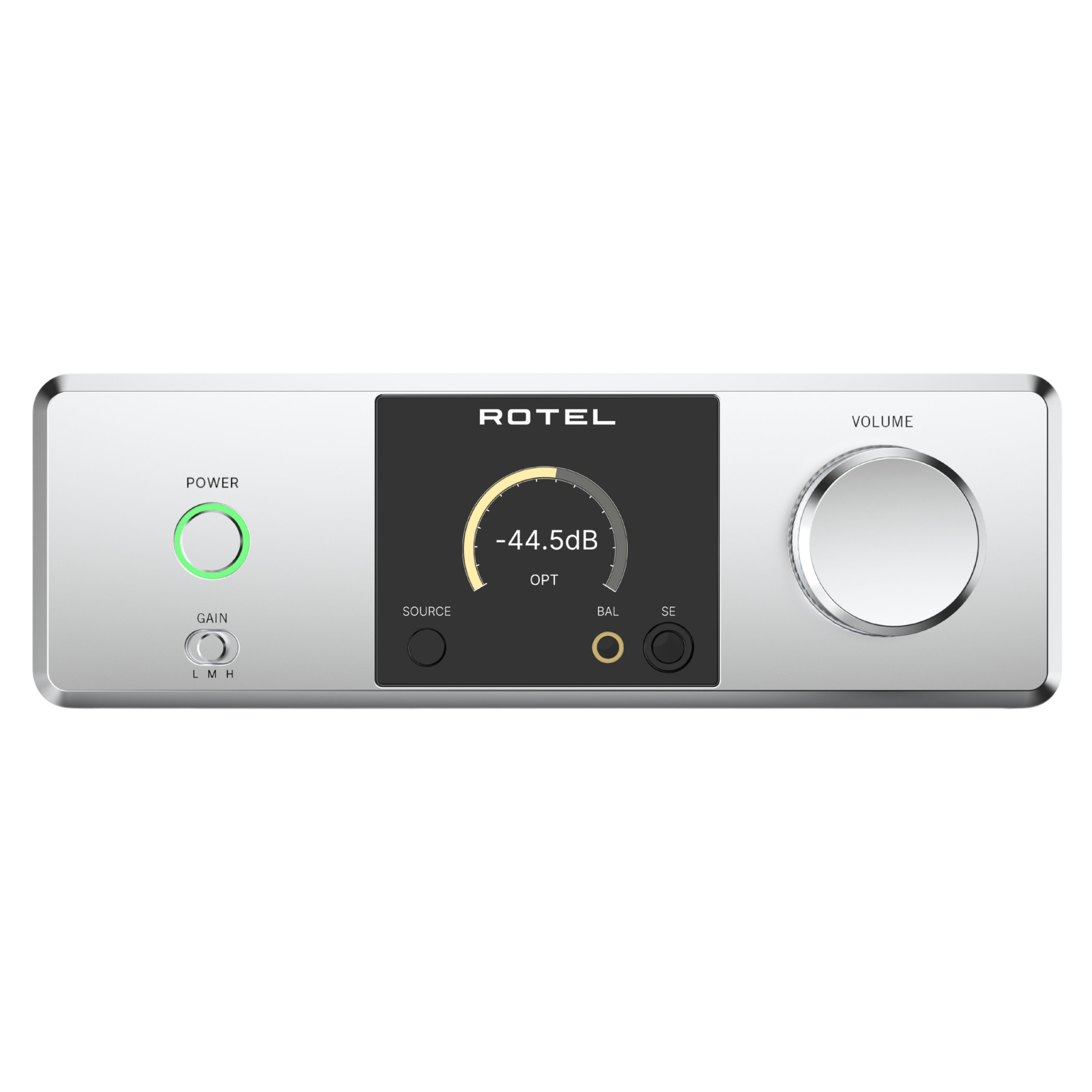

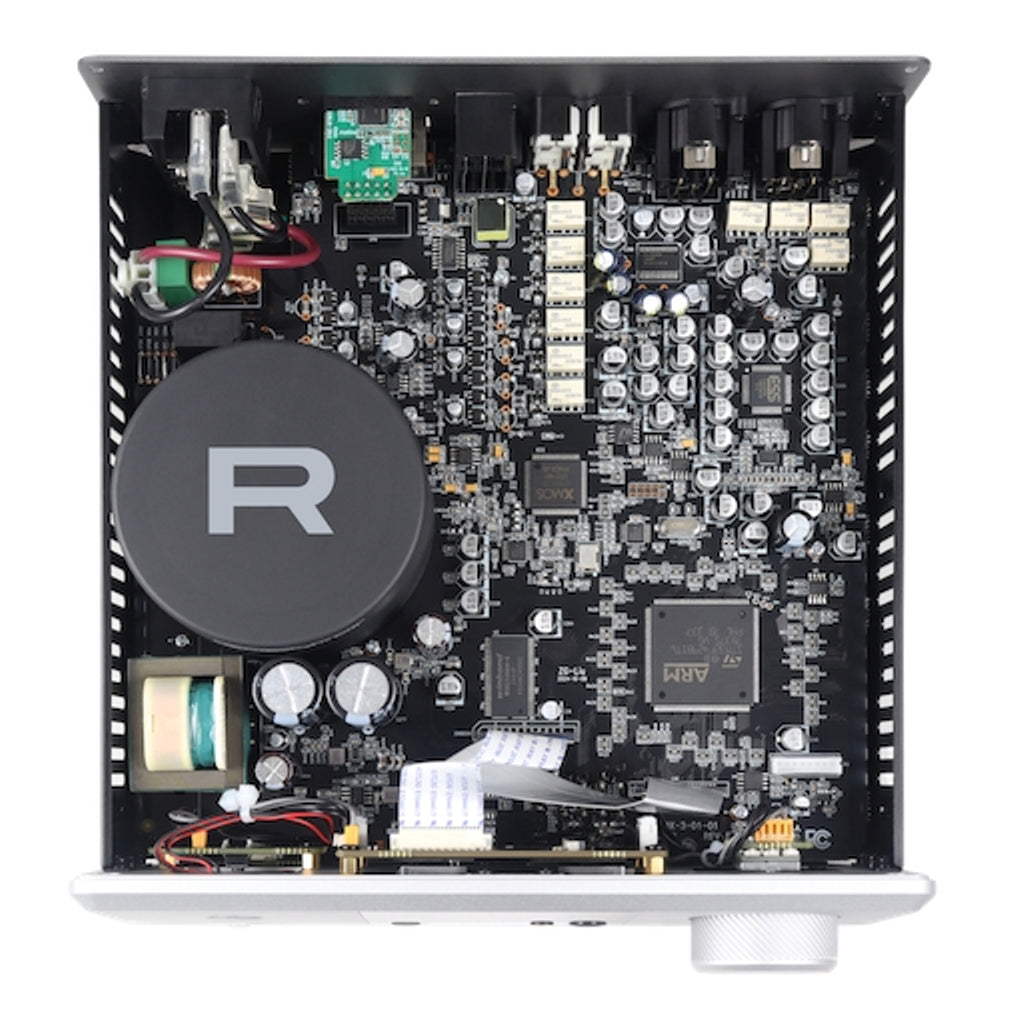

The internal headphone amplifier is powered by a custom, in-house manufactured shielded toroidal transformer with high-current drivers, producing dynamics with ultra-low distortion of <0.004%. Variable user-selectable headphone gain levels—High, Medium, and Low—support both low- and high-impedance headphones via front-panel 4.4mm balanced and 6.35mm single-ended connectors. Volume attenuation is managed by an audiophile-grade NJW1195A analog controller, providing precise steps as fine as 0.5dB.

Flexible DAC and Preamplifier Functionality

The DX-3 also functions as a standalone DAC and fully-featured preamplifier through XLR balanced and RCA outputs. This versatility allows it to directly drive external amplifiers, powered speakers, or integrate into existing audio systems. A full-color front panel display provides clear user feedback and simplifies setup, while the included aluminium extruded remote control gives convenient access to all runtime and configuration functions.

Redefining Personal Audio
Whether used as a high-performance headphone amplifier, feature-rich preamplifier, or advanced DAC, the DX-3 redefines the personal audio space. It delivers remarkable performance, a comprehensive feature set, and exceptional value, making it an ideal choice for discerning audiophiles seeking both sophistication and convenience.

ESS Sabre ES9028PRO DAC – high-resolution audio
Integrated Headphone Amp – ultra-low distortion, variable gain

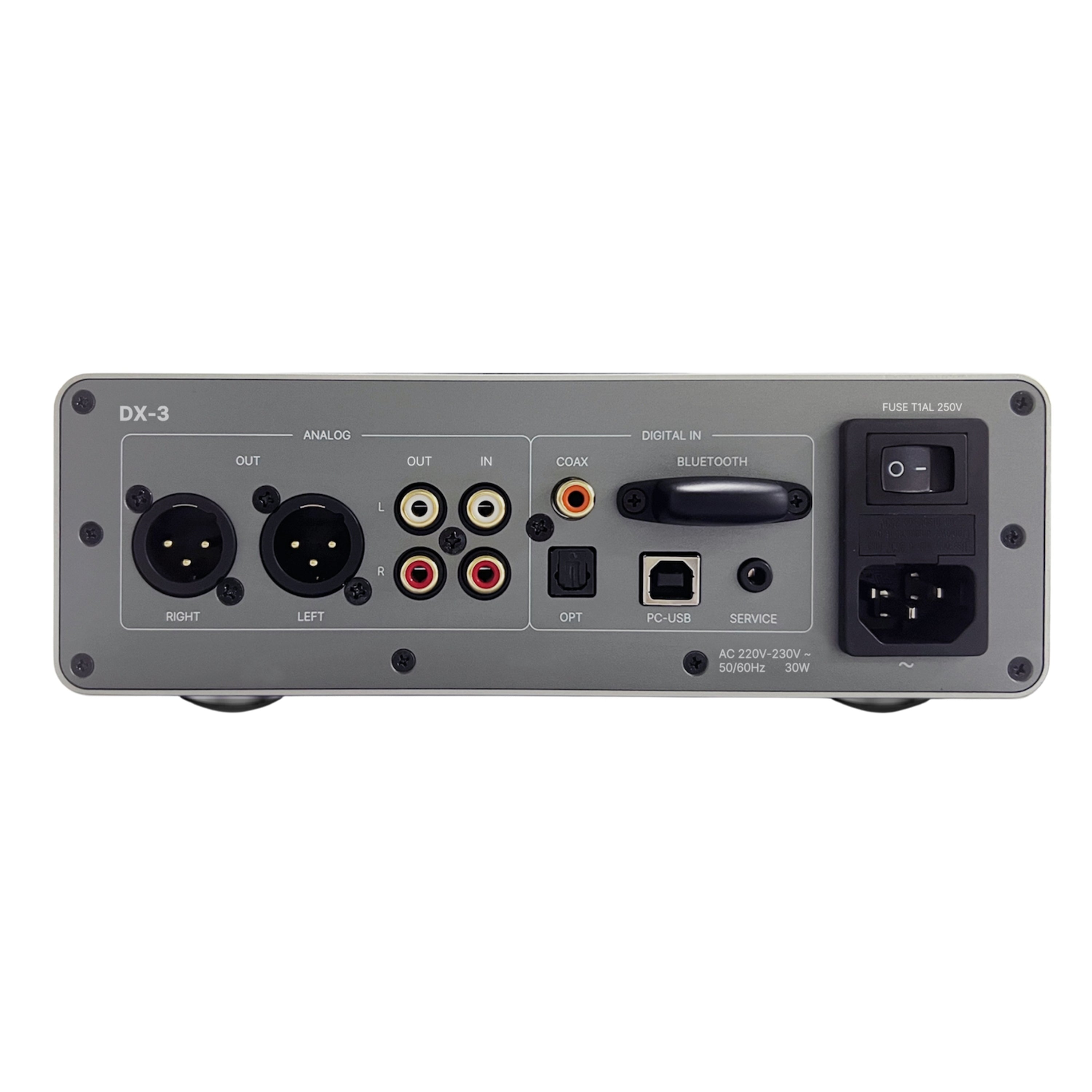

Multiple Inputs – USB, coaxial, optical, RCA, aptX™ HD Bluetooth
Balanced & Single-Ended Outputs – 4.4mm & 6.35mm
Standalone DAC/Preamplifier – XLR & RCA outputs
Compact, Elegant Design – full-color display and remote

Power Output (THD+N < 1%):

Single-ended (6.35 mm): 765 mW (16 Ω), 383 mW (32 Ω), 41 mW (300 Ω)
Balanced (4.4 mm): 2.8 W (16 Ω), 1.4 W (32 Ω), 150 mW (300 Ω)

Total Harmonic Distortion (32 Ω, 1k Hz):

Single-ended: < 0.008% @ Output = 70 mW
Balanced: < 0.004% @ Output = 270 mW

Intermodulation Distortion (60 Hz : 7k Hz, 4:1)

Single-ended: < 0.01%
Balanced: < 0.006%

Frequency Response:

20 Hz - 20k Hz, (+0 dB, -0.2 dB)

Output Impedance:

Single-ended: < 0.3 Ω
Balanced: < 0.6 Ω

Signal to Noise Ratio (IHF “A” weighted):

Single-ended: > 100 dB
Balanced: > 110 dB

Gain:

0 dB @ Gain = H, -6 dB @ Gain = M, -12 dB @ Gain = L

Recommended Headphone Impedance:

16 Ω - 300 Ω

Total Harmonic Distortion (20 Hz– 20k Hz):

Unbalanced (RCA): < 0.006%
Balanced (XLR): < 0.003%

Intermodulation Distortion (60 Hz : 7k Hz, 4:1):

< 0.001%

Frequency Response:

20 Hz – 20k Hz (+0 dB, -0.4 dB)

Signal to Noise Ratio (IHF “A” weighted):

> 107 dB

Line Output Level / Impedance:

Unbalanced (RCA): 1 Vrms / 100 Ω
Balanced (XLR): 2 Vrms / 200 Ω

Input Sensitivity / Impedance:

1.2 V / 10k Ω

Input Overload:

Channel Separation:

> 86 dB @ 10k Hz
