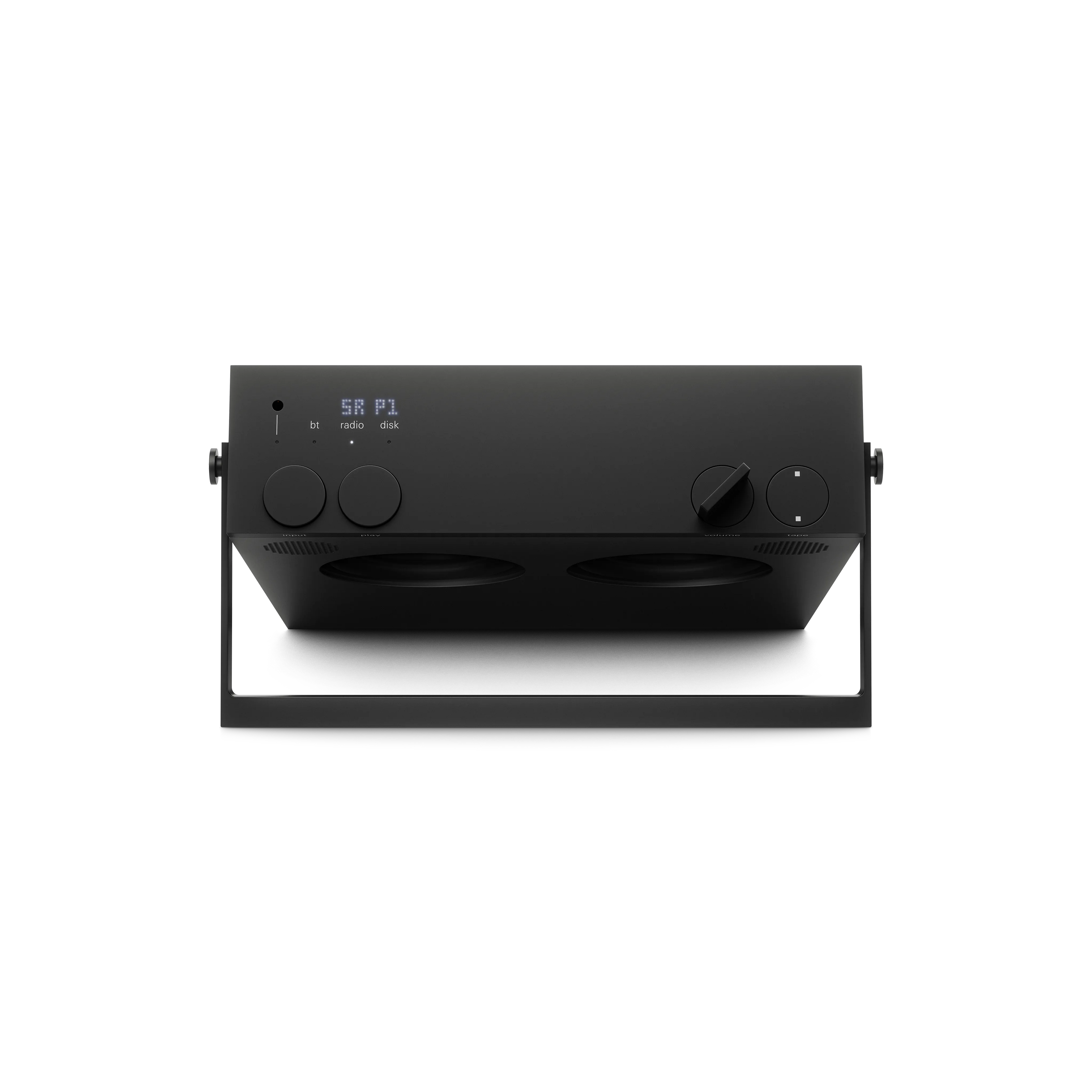

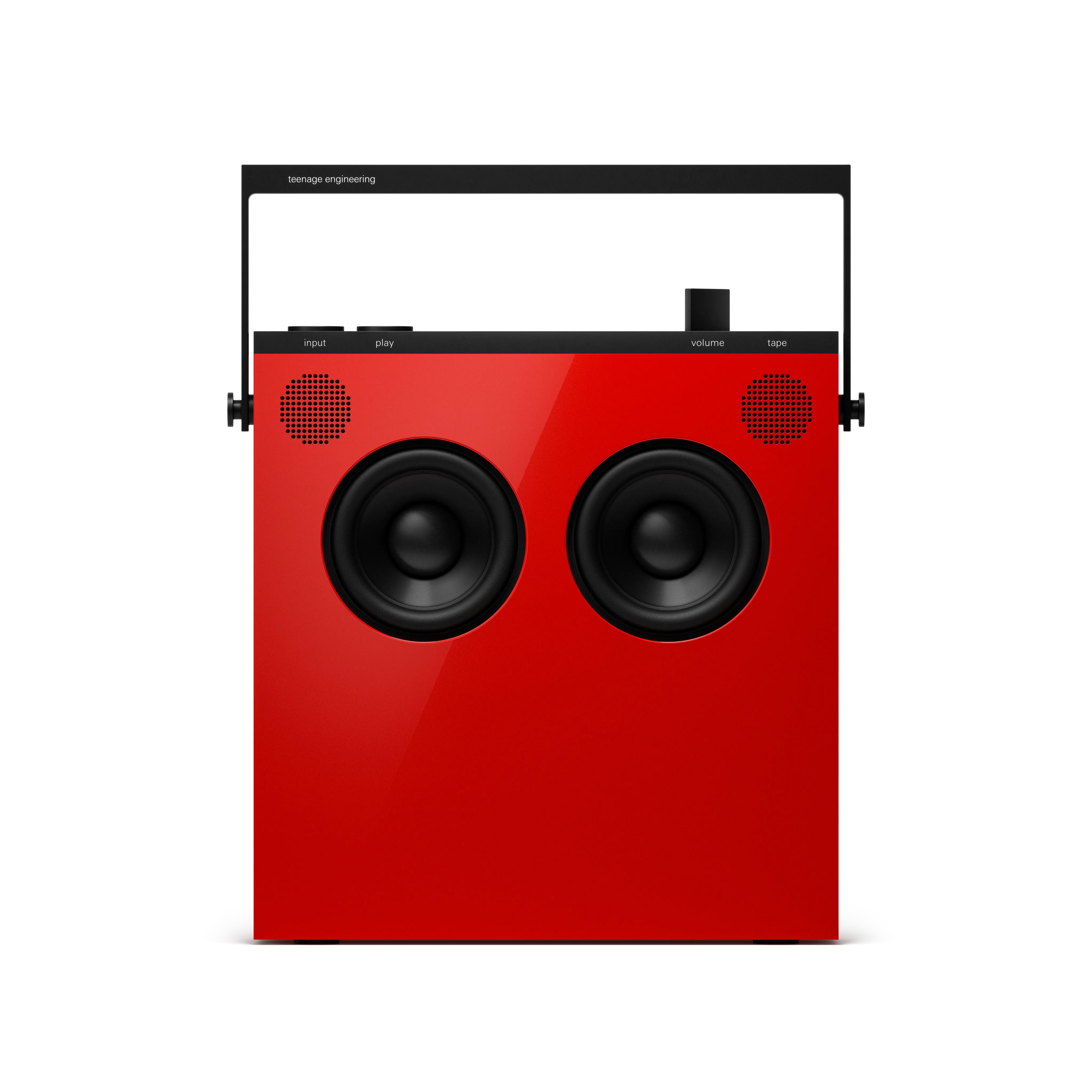

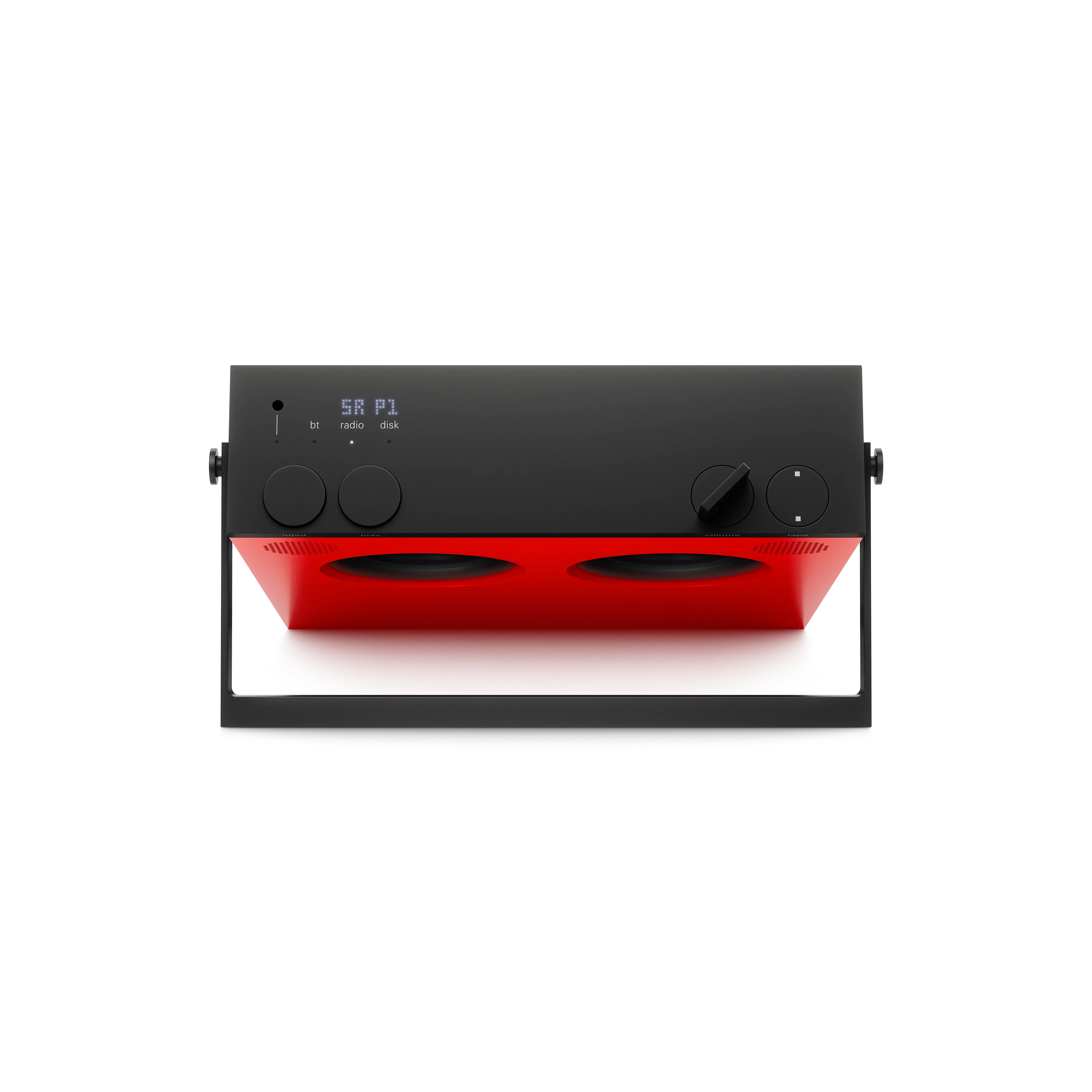

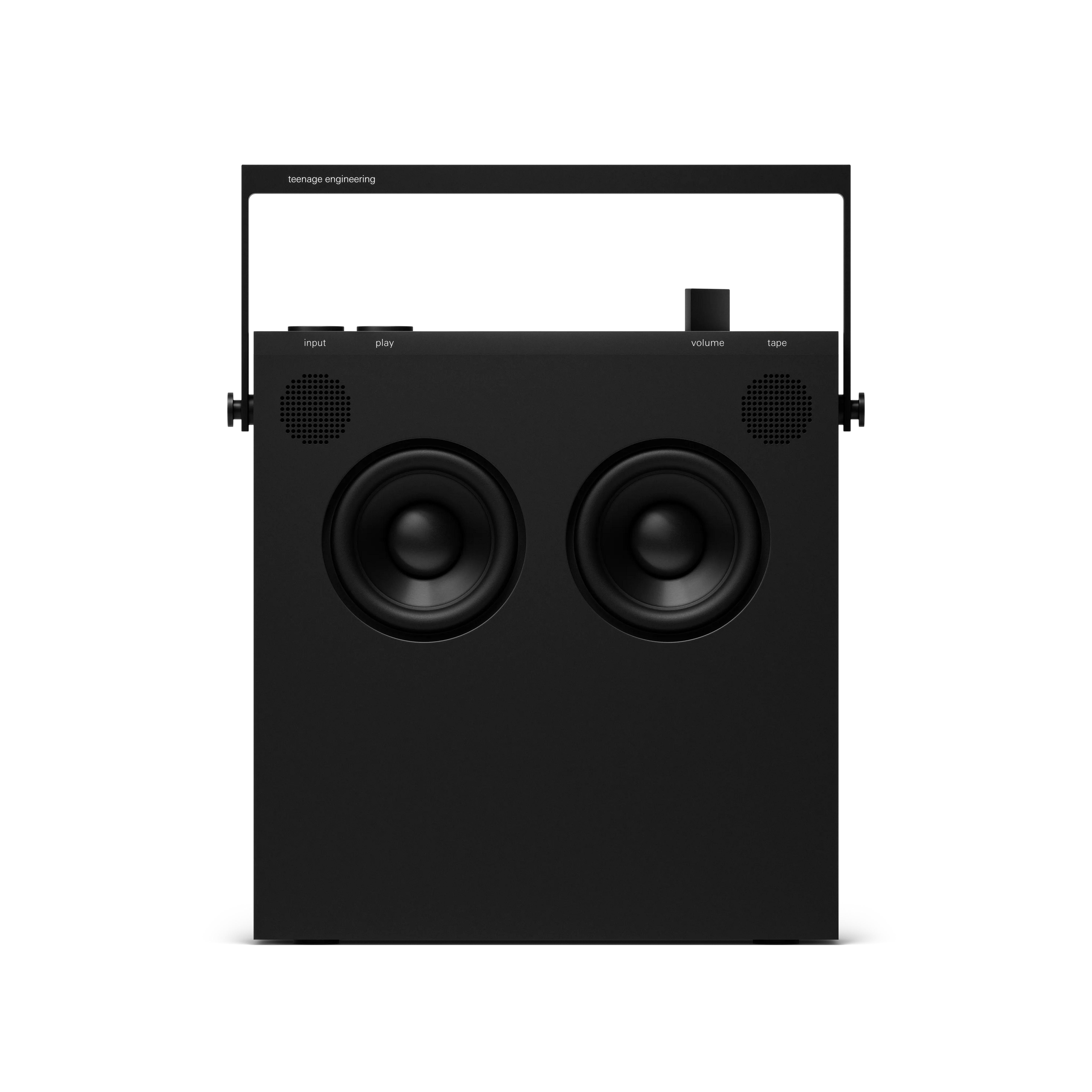

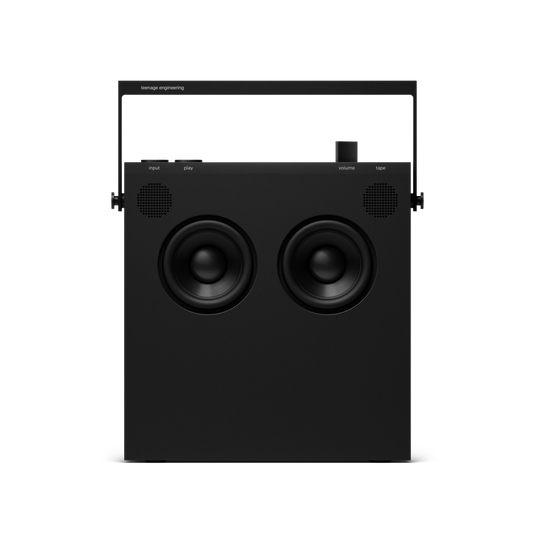

Teenage Engineering OB-4 The Magic Radio

$985.00
Available from Supplier
We can order this item from our supplier. It usually ships from our store within 3–4 business days if the supplier has it in stock.
Colour
Qty
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Big Sound, Compact Design

This speaker delivers room-filling performance with an ortho-directional design and a flow-optimized bass reflex duct. Despite its compact footprint, it produces deep bass and crystal-clear highs for a natural, balanced sound.



Precision Audio Performance

With a wide frequency range of 28–20,000 Hz (-3 dB), you’ll hear every detail from the lowest notes to the brightest treble. The high-efficiency ferrofluid-cooled neodymium tweeter ensures crisp clarity, while the 6.5" long-throw pulp cone woofer delivers powerful, controlled bass.



Crafted for Quality

Built from high-density fiberboard, reinforced plastic, and a woven steel mesh grille, this speaker combines durability with refined acoustic engineering. The solid construction minimizes resonance for pure sound reproduction.



Powerful and Efficient

The built-in 100 W ultra high-efficiency amplifier provides strong, distortion-free output, perfect for both casual listening and high-volume sessions.



Wireless Freedom

Stream music your way with beam-forming Wi-Fi technology and Bluetooth 4.0 LE. Enjoy seamless access to your favorite services including AirPlay 2, Spotify Connect, and Bluetooth audio.



Flexible Connections

Easily integrate with your setup using the 3.5 mm audio input or PCM optical input. Simple, intuitive controls include plus/minus buttons, a function button, stereo selector switch, and an RGB LED display.



Universal Power Supply

Ready for global use, the speaker features a universal power supply (AC 100–240 V, 50–60 Hz), making it just as reliable on the road as it is at home.

Product Name

  • OB–4 (Ortho Book 4)

Speaker Principle

  • Flow-optimized bass reflex duct
  • Semi-unified chamber

Frequency Range

  • 52 – 25,000 Hz

Dimensions

  • 232.5 × 284 × 57.5 mm

Weight

  • 1.7 kg

Materials

  • Amorphous polymer glass-fiber reinforced PC
  • Milled aluminum

Design Features

  • Fine-pitch tweeter grille
  • Gel-dampened handle
  • Custom direct-drive volume knob
  • Tape dial

Max SPL @ 1 m (Stereo Configuration)

  • 92 dB unsupported wideband

Bass Capability @ 1 m

  • 104 dB SPL supported

Active Crossover Frequency

  • 3.5 kHz

Configuration

  • Stereo 2 + 2

Tweeter

  • High-efficiency, ferrofluid-cooled neodymium driver

Woofer

  • Long-throw, high-power capacity neodymium driver

Amplifier

  • 2 × 38 W
  • Ultra high-efficiency Class D

Wireless

  • Bluetooth® Classic (AAC)
  • Bluetooth® 5 LE
  • FM radio

Inputs

  • 3.5 mm stereo in (2.8 Vpp for 0 dBFS)

Battery Life

  • Up to 72 hours (FM, normal volume)
  • Up to 8 hours (Bluetooth, high volume)

Power Requirements

  • AC 100–240 V, 50/60 Hz
  • Universal built-in power supply

Included Accessories

  • Mains power cable
  • Antenna

Compatible Add-Ons

  • Ortho Remote
  • Shoulder Strap

HARM Code

  • 8518220000

Country of Origin

  • Czech Republic
